Single-strand Magnet Wire Stripper

JCW-ES3540

Multiple blade sizes available

Quick and easy replacement

Precise peeling length control

Vacuum function optional

Inquire Now

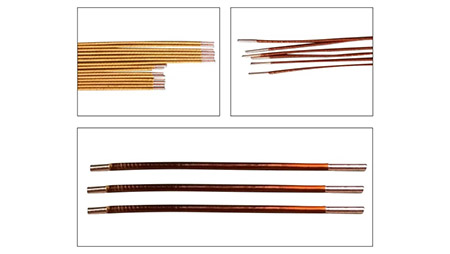

The JCW-ES3540 wire stripping machine offers a variety of tool specifications to handle enameled wires of different diameters.

Tool 0#: Wire diameter 0.35 - 0.55 mm

Tool 1#: Wire diameter 0.55 - 0.88 mm

Tool 2#: Wire diameter 0.88 - 1.45 mm

Tool 3#: Wire diameter 1.45 - 1.98 mm

Tool 4#: Wire diameter 1.98 - 2.48 mm

Tool 5#: Wire diameter 2.48 - 2.95 mm

Tool 6#: Wire diameter 2.95 - 3.25 mm

Model	JCW-ES3540 Single-strand Magnet Wire Stripper
Cable diameter	0.35 - 4.0 mm
Stripping length	1 - 65 mm
Rotate speed	2800 r/min
Rated power	120 W
Blade material	Tungsten steel diamond rod-shaped
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz, 800VA
Dimensions	L 250 x W 150 x H 150 mm
Weight	5.5 KG
