15KN crimping force
4 sets of crimp die sets
Fast crimp die sets changeover
16 mm² boot lace ferrule
10 mm² non-insulated terminal
Cycle time 1.5 seconds

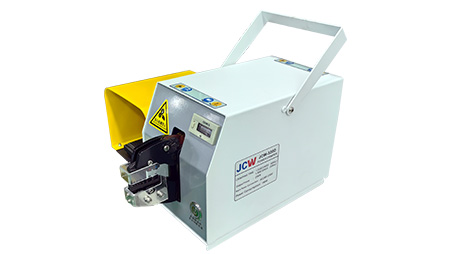

JCW-320D Electric Bench Top Terminal Crimping Machine
15 KN crimping force, fast change crimp die sets, dozens of die sets for selection
JCW-320 Series Portable Bench-top Terminal Crimping Machine
The JCW-320 series terminal crimping machines now have over 10 electric and pneumatic models. We are continuously improving existing models and developing new ones. The main feature of the JCW-320 series is that all models are compact and portable, and can crimp various closed barrel and open barrel terminals by quickly changing the crimp die sets.
Different from manual crimp tools, the JCW-320 series crimpers are lightweight and very efficient, so to reduce the physical force required by hand tools but offer a more reliable crimping effect. The operation is very simple and standardized, even novices can handle these crimping machines easily.
The JCW-320 series crimping machines are activated by a foot pedal, the operator can place the terminal and wire with two hands, which has achieved a safer operation, reducing crimping cost and improving crimping quality.
JCW-320D Electric Crimping Loose Piece Machine
Insulated terminal, non-insulated terminal, flag terminal, fast change dies set, crimp counter.
|Cable range||Bootlace ferrule: 16 mm²|
|Uninsulated terminal: 10 mm²|
|Crimping force||15 KN|
|Crimp dies sets|
|Power supply||AC 110 - 220 V ± 10%, 50 / 60 Hz|
|Dimensions||L 150 x W 180 x H 330 mm|
Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
