6mm² Automatic Solid Core Wire Cut Strip and Bend Machine

JCW-CS10A

Fully programmable wire bending machine

No damage to insulation and conductor

Smooth bending to ensure the conductive effect

7" touchscreen, user-friendly interface

Bending degrees 0- 150 degree

Cable range up to 6 mm²

Inquire Now

Automatic Electric Wire Cutting to Bending Machine

Patent Wire Cutting Stripping and Bending Machine

JCW-CS10A is a fully automatic integrated machine built for single-core solid wires with a maximum cross-section of 6mm².

In one automatic cycle, it completes fixed-length cutting, precise insulation stripping and programmable 2D bending.

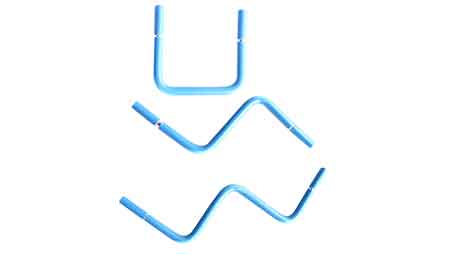

All bending angles are freely adjustable to meet different schematic wiring requirements.

It is widely adopted in both power and telecommunication industries, used for pre-bending BV solid wires inside distribution cabinets, switchgear, communication frames and network cabinets.

It replaces slow, inconsistent manual bending, delivering stable forming accuracy and excellent repeatability.

This equipment greatly improves harness production efficiency and reduces scrap caused by human operation errors.

Simple parameter setup, robust mechanical construction, suitable for continuous batch production of pre-formed electrical and communication wiring.

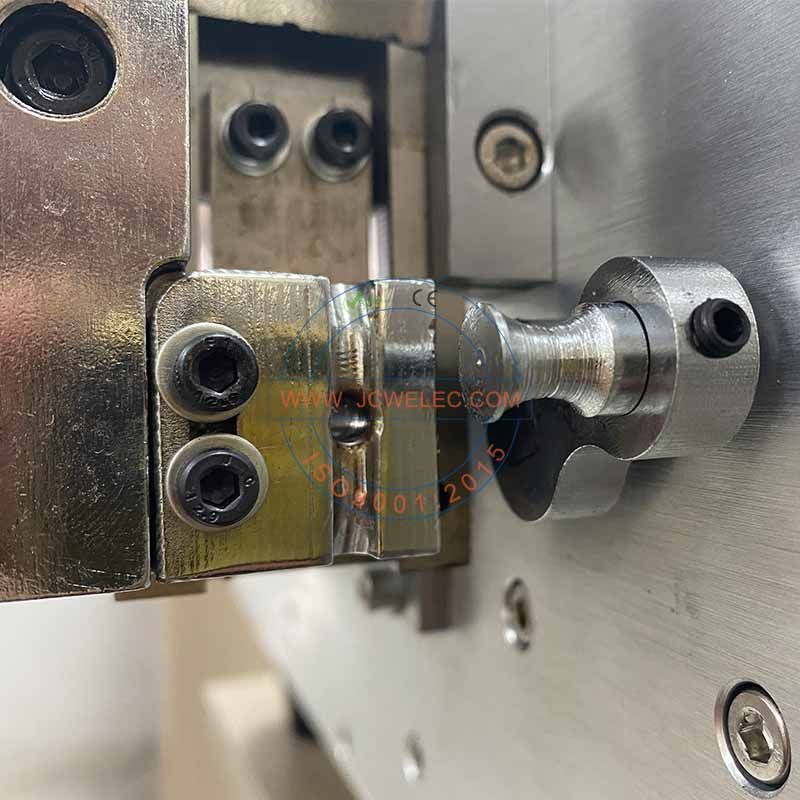

JCW-CS10A-BENDING-DEVICE

Model	JCW-CS10A Automatic Wire Stripping and Bending Machine
Function	BV wire, Wire end stripping, Wire bending, Cut depth, Horizontal bending, 30°-90°, Data library
Conductor cross-sections	0.5 - 6 mm² [ AWG 20 - 9 ]
Cutting length ( L )	0.1 - 99999 mm
Stripping length	Max 50 mm
Bending numbers	16
Bending degree	0- 150
Data library	100 programs
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa [ clean and dry air ]
Dimensions	L 460 x W 500 x H 440 mm
Weight	45 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
