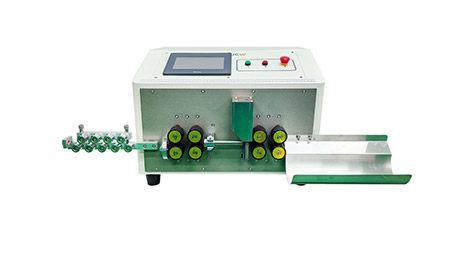

Heavy-duty Automatic Cable Cutting and Stripping Machine JCW-CS05

4th generation, ultra-high cost-effective, precise processing, reliable model


Reliable and Precise

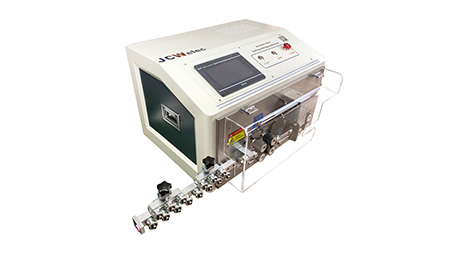

As a star model of JCWelec's cable cutting and stripping machine, the JCW-CS05 has been impressive since the beginning. Its comprehensive capacity covers both single wire and multi-conductor cable. The proven high-performance and affordable prices make the JCW-CS05 the leader in the same class.


In 2021, we completed the upgrading of the 4th generation of JCW-CS05 cable cut and strip machine, optimizing the mechanical structure and software programs, the machine is more reliable and more functional. The new machine uses higher torque stepper motors, offers higher cutting force and higher production speed than the last generation.


Easy to use

Whether novice or professional, you can quickly use the JCW-CS05 wire cutting & stripping machine proficiently.

- The control with touch screen has an intuitive user interface for simple and safe operation.

- The parameters such as wire cutting length, stripping length, wire diameter, speed, etc. can be accurately entered and stored for future recall at any time.

- Data library saves 100 programs, you can name each one by a wish.

- This cutting and stripping machine features an automatic one-touch calibration function for cutting length.

- Wire run-out sensor gives the machine a stop signal while the wire is used out.

- Quickly change guide tubes and cutter blades.

Each CS05 cut & strip machine comes with a complete set of guide tubes, spare cutter blade, local power cord, and silicone touchscreen pen.

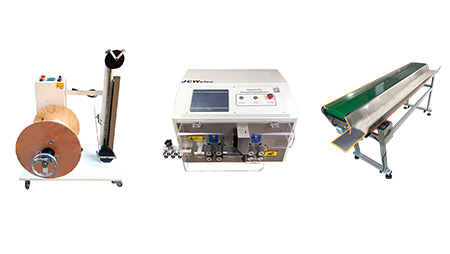

Various options for specific applications

- Wire unwind & pre-feed machine, load range from 15 to 200 KG

- Robot arm controlled by CS05

- Cable stacker, 1 meter to 6 meters

- V-blade, Multi-V blade, Radius blade, Flat blade

Model

JCW-CS05

Heavy-duty 12mm O.D. Automatic Battery Cable Stripping Machine

Function

Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Wire lack sensor, Length correction

Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections0.1 - 25 mm², 12 mm diameter
Cutting length ( L )0.1 - 999999 mm
Cutting length accuracy
0.002 x L
Stripping lengthFront ( right ) side: 250 mm [ partial stripping ]
Rear ( left ) side: 120 mm [ partial stripping ]
Middle strip13 sections
Production rate1000 pcs/h by 100mm wire length
Data library100 programs
Flat cableSlit and strip, by changing straightener, guide and blade
Multicore cableOuter jacket stripping
Display7" color touchscreen, English / Chinese  [ other languages on request ]
Cable feeding
8 rollers
Compatible peripheralsCable prefeeding machine, robot arm, conveyor belt
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply0.4 - 0.7 MPa ( clean and dry air )
DimensionsMachine: L 650 x W 580 x H 450 mm
Wire straightener: 350mm
Weight70 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
