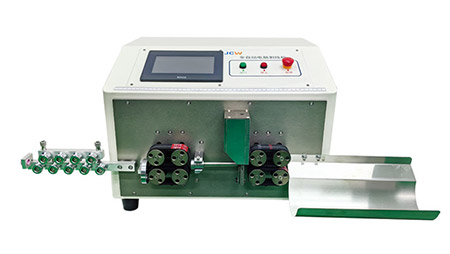

Universal Belt Feed Wire and Cable Processing Machine [ 0.1-25mm² ]

JCW-CS05A

Upgraded version of CS05

One machine for all cables from 0.1 to 25 sqmm

High-quality belt-feeding system

8 rollers driven by high-torque hybrid step motors

AV battery cable, multiconductor cable, PVC, rubber, etc

Barcode scanner is optional

Fully-covered safety guard is optional

Inquire Now

Metal Made Safety Guard & Scrap Container [ On request ]

High-speed Cable Cut & Strip Machine

The JCW-CS05A series is an upgrade of the JCW-CS05. It uses a belt feeding system to replace the roller feeding system, which is particularly suitable for processing multicore sheathed cable and high-demand single-core wires.

The belt feeding system can avoid the situation where the roller system leaves marks on the surface of the wire insulation, and at the same time, the accuracy of the wire feeding length is greatly improved.

The upper and lower rollers open and close simultaneously to ensure that the center of the rollers is parallel to the center of the blade.

The high-torque stepper motor ensures the high cutting force.

Model	JCW-CS05A Belt Feed 25mm² Cable Cable Processing Equipment
Function	Wire measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Wire lack sensor, Length correction
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections	0.1 - 25 mm², 12 mm O.D
Guide inner diameter	4 / 6 / 8 / 10 / 12 / 14 / 16 mm
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Stripping length	Front ( right ) side: 150 mm
Stripping length	Rear ( left ) side: 70 mm
Middle strip	16 sections
Production rate	1200-2000 pcs/h by 100mm wire length
Data library	100 programs
Multicore cable	Outer jacket stripping only
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Cable feeding	8 rollers driven belt system
Blade type	V-blade, radius blade
Compatible peripherals	Cable prefeeding machine, robot arm, conveyor belt, printer
Rated power	1800 W
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	Machine: L 570 x W 550 x H 410 mm
Dimensions	Wire straightener: 350mm
Weight	60 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
