JCW-10T Hydraulic & Pneumatic Cable Lug Hexagonal Crimping Machine

70mm² uninsulated cable lug, 100 KN crimping force, fully programmable

Hexagonal crimping for cable, lug, and connector

Hexagonal crimp is the most common type of crimping for copper and aluminum cable, lug, and connector. Its advantage is the central force which is applied consistently from all directions by the hexagonal crimping die sets. During the crimping operation, the individual strands of the conductor are being homogeneously compressed preventing any damage.

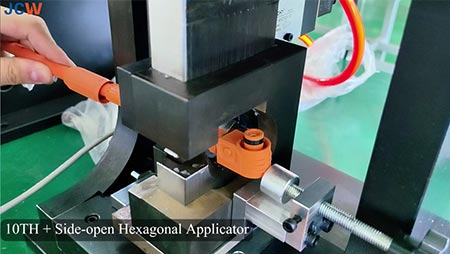

The JCW-10T is such a professional hexagonal crimping machine that is mainly designed for large uninsulated tubular terminals ranging from 10 to 70mm², it also can be used for crimping large pre-insulated connectors. It is widely used in the power industry, new energy cables, charging cables, and charging gun wire harness processing field.

Reliable crimping, robust applicator, simple operation

The JCW-10T cable lug crimping machine is a hydraulic and pneumatic driven model, that offers 100KN crimping force and low energy consumption. 150KG weight robust casting body is the guarantee of reliable crimping.

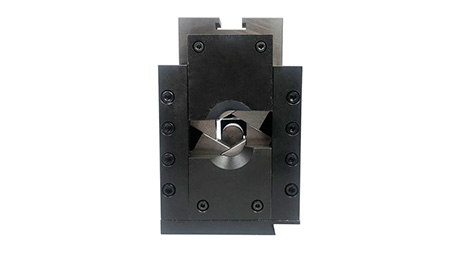

This crimping machine uses JCW's 4th generation hexagonal crimp applicator, super robust and precise, the proven accuracy is 0.03mm.

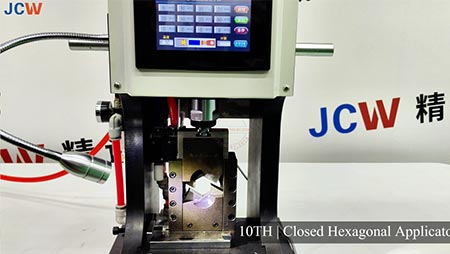

The operator can adjust crimp height and switch saved programs in seconds by touching the display, with no crimp dies set adjustment needs.

This hydraulic and pneumatic crimping machine can save 12 programs which include crimping height, holding time, etc.

Standard machine comes with English display, we are also capable to add other languages to meet personal needs.


JCW-10T Uninsulated Cable Lug Hexagonal Crimping Machine


Uninsulated tubular terminal, Hexagonal crimping, Crimp height adjustment via HMI, Data library

Capacity10 - 70 mm² [ Min AWG 10 ]
Crimping force100 KN
Crimping length12.5 mm [ other lengths on request ]
Crimp height accuracy0.03 mm
ActivationFoot pedal / HMI
Rated power100 W
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply0.5 - 0.8 MPa
DimensionsL 310 x W 370 x H 920 mm
Weight150 KG

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
