3 models for selection
Wire & cable up to 50mm O.D.
Stripping length up to 300mm
Color touchscreen, fully programmable
PUR, PVC, Teflon, Tefzel, etc

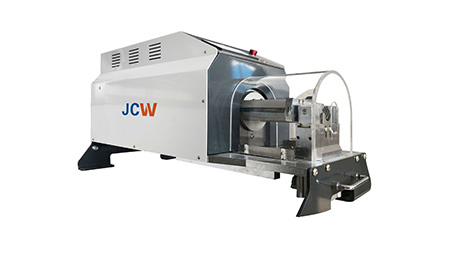

JCW-S100 / JCW-S200 / JCW-S300 Heavy Cable End Rotary Stripping Machine
Cable up to 50mm O.D, stripping length up to 300mm
The JCW-S100 series cable stripping machines are designed for heavy cable end stripping. These stripping machines are suitable for heavy-duty multicore cable, EV cable, etc. All the 3 models use rotary cutter heads, which allow vertical cutting into thick insulation. Powerful cylinders ensure precise and neat pull-off.
The JCW-S100 processes cable up to 25mm O.D with a max of 100mm stripping length.
The JCW-S200 processes 25mm O.D cable with max 200mm stripping length.
The JCW-S300 is capable to process 50mm O.D cable with up to 300mm stripping length.
|Model||JCW-S100 / JCW-S200 / JCW-S300 Heavy Cable End Rotary Stripping Machine|
|Function||Full stripping, partial stripping, stripping length, data library, EV cable|
|Raw material||PVC, Teflon, Silicone, Low halogen, Fiberglass, etc|
|Conductor cross-sections||JCW-S100: 10 - 120 mm²|
|JCW-S200: 10 - 120 mm²|
|JCW-S300: 10 - 240 mm²|
|Wire diameter||JCW-S100: 10 - 25 mm|
|JCW-S200: 10 - 25 mm|
|JCW-S300: 10 - 50 mm|
|Stripping length||JCW-S100: 1 - 100 mm|
|JCW-S200: 1 - 200 mm|
|JCW-S300: 1 - 300 mm|
|Stripping length tolerance||0.02 mm|
|Display||4.3" color touchscreen, English / Chinese [ other languages on request ]|
|Air supply||0.5 - 0.7 MPa ( clean and dry air )|
|Power supply||AC 110 - 220 V ± 10%, 50 / 60 Hz|
|Dimensions||L 1100-1400 x W 330-360 x H 420 mm|
|Weight||80 - 110 KG|
Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
