Pneumatic Cable Sheath Stripping Machine

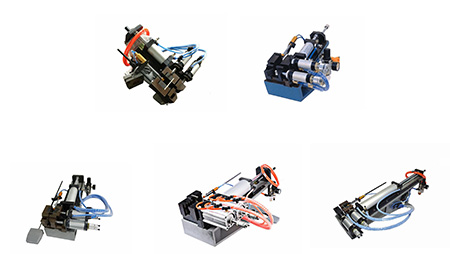

Pneumatic Cable Stripping Machine Family

Powerful, robust, cheap

The JCW-S02 pneumatic cable stripping machines are suitable for processing the outer sheath of the multicore cable. You can also process stranded wire. These stripping machines are ideal and economic choices to meet wire processing requirements by replacing hand tools.

All of these stripping machines are activated by a foot pedal. The clamping width, cutting depth and pull-off length are easily adjusted by adjusting cylinders.

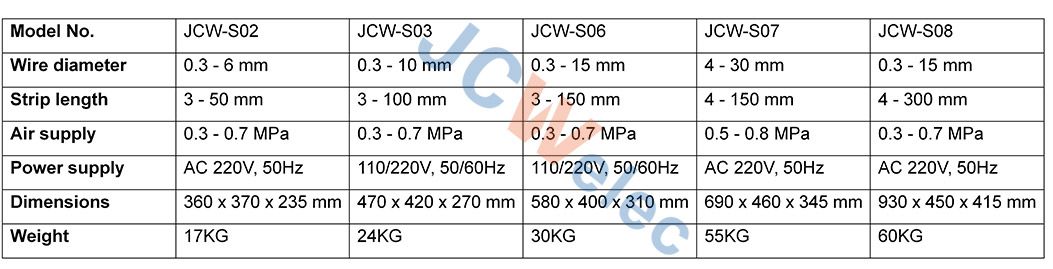

Cable stripping capacity

JCW-S02, wire diameter 0.3 - 6 mm, stripping length 3 - 50 mm

JCW-S03, wire diameter 0.3 - 10 mm, stripping length 3 - 100 mm

JCW-S06, wire diameter 0.3 - 15 mm, stripping length 3 - 150 mm

JCW-S07, wire diameter 4 - 30 mm, stripping length 4 - 150 mm

JCW-S08, wire diameter 0.3 - 15 mm, stripping length 4 - 300 mm

JCW-S09, wire diameter 4 - 50 mm, stripping length 4 - 200 mm

JCW-S10, wire diameter 4 - 50 mm, stripping length 4 - 400 mm

JCW-S11, wire diameter 4 - 50 mm, stripping length 4 - 600 mm
