Semi-automatic Wire Stripping and Twisting Machine

JCW-CS01

Electric pneumatic driven

Wire stripping

High-speed rotate twisting

Stripping length 3 - 45 mm

Cable range up to 5 mm²

Foot pedal control

PVC, Teflon, Silicone, Low halogen, Fiberglass cables

Inquire Now

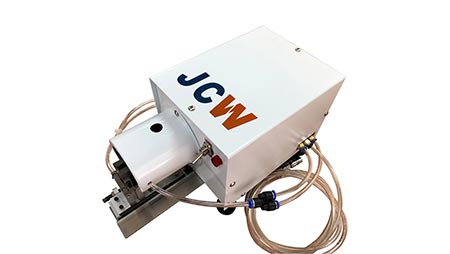

Semi-auto Wire Stripping Twisting Machine

JCW-CS01 Wire Stripping and Twisting Machine

JCW-CS01 semi-automatic pneumatic-electric wire stripping & twisting machine adopts cylinder rear pull mechanism.

It has simple structure and compact footprint, saving bench space.

With affordable price, it strips insulation and twists wire strands in one cycle.

Foot pedal operation, easy to operate with stable twisting effect.

Suitable for electronic wire and wire harness processing. Factory direct supply.

Model	JCW-CS01 Wire Stripping and Twisting Machine
Function	Wire end stripping, Conductor twisting, Full stripping, Partial stripping, Cut depth
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections	0.1 - 5 mm² [ AWG 26 - 10 ]
Stripping length	3 - 45 mm
Power supply	AC 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.6 MPa [ clean and dry air ]
Dimensions	L 320 x W 180 x H 170 mm
Weight	12 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
