Automatic 6mm Multi-conductor Cable Cut & Strip Machine JCW-CS08

Focus on multicore cable, strip both layers, best selling


Specialist in processing multicore cable

The JCW-CS08 is designed for cutting and stripping multicore cable up to 6mm O.D, it perfectly cuts and strips both of outer jacket and inner cores at one time. This cut and strip machine's highlight part is that it will flatten the inner cores so well before stripping, that guarantees the vertical cutting and neat stripping. The JCW-CS08 cut & strip machine adopts a titanium coated cutter blade, which has 2 sharp cutting edges.


This cut & strip machine also can be used for single wire up to 8 mm².


Easy to use

Each of the JCW-CS08 cutting and stripping machine comes with English display, the display language is customizable. A user-friendly interface and color touchscreen make the operation so accurate and simple.

- The control with touch screen has an intuitive user interface for simple and safe operation.

- The parameters such as wire cutting length, stripping length, wire diameter, speed, etc. can be accurately entered and stored for future recall at any time.

- Data library saves 100 programs, you can name each one by a wish.

- Automatic one-touch calibration function for cutting length.

- Cable run-out sensor gives the machine a stop signal while the cable is used out.

- Quickly change guide tubes and cutter blades.

- Transparent safety cover with sensor


A variety of peripherals

- Wire unwind & pre-feed machine, load range from 15 to 200 KG

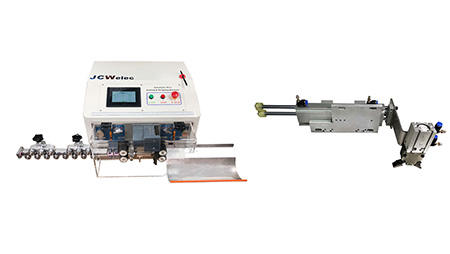

- Robot arm controlled by CS08

- Cable stacker, 1 meter to 6 meters

ModelJCW-CS08 Automatic Multi-core Cable Cutting and Stripping Machine
Function

Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Mid-stripping, Wire lack sensor, Length correction, Thermal transfer printer

Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Cable size6 mm O.D.
Cutting length ( L )0.1 - 999999 mm
Cutting length accuracy
0.002 x L
Single wireYES
Multi-core cableRound
Outer jacket stripping lengthLeading ( right ) side: 250 mm [ partial stripping ]
Trailing ( left ) side: 100 mm [ partial stripping ]
Inner core stripping length30 mm at dual-ends
Middle strip13 sections
Production rate1300 pcs/h by 100mm wire length [ multi-layer stripping ]
Data library100 programs
Display4.3" color touchscreen, English / Chinese  [ other languages on request ]
Compatible peripheralsCable unwinder, robot arm, conveyor belt
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply0.4 - 0.7 MPa ( clean and dry air )
DimensionsMachine: L 460 x W 470 x H 350 mm
Wire straightener: 350mm
Weight38 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
