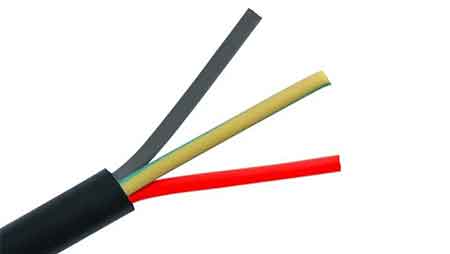

Flexible Multicore Insulated Cable Processing

Flexible Multicore Insulated Cable Processing

Servo Motorized Belt Feed Automatic Cable Cut & Strip Machine JCW-CS07

Focus on multicore cable, high precision on long cutting and stripping


Specialist in processing multicore cable

The JCW-CS07 is designed for cutting and stripping multicore cable, it perfectly suits long cutting length. Servo motorized belt feeding system guarantees the feeding precision, keeps stable clamping during the whole processing, and avoids causing any damage to the outer jacket. Excellent performance will meet the strict requirements of high-demand customers.


The JCW-CS07 cable cutting and stripping machine uses 7 axis motion control card to control the rollers precisely, the roller distance and pressure are all adjustable via a 7" color touch screen. Upper and lower rollers move simultaneously, no matter cable is big or small, the center points of the cable are always parallel with the guide tube and cutter blade.


Easy to use

The standard model of this cutting and stripping machine comes with an English display, the display language is customizable. A user-friendly interface and color touchscreen make the operation so accurate and simple.

- The control with touch screen has an intuitive user interface for simple and safe operation.

- The parameters such as wire cutting length, stripping length, wire diameter, speed, etc. can be accurately entered and stored for future recall at any time.

- Data library saves 100 programs, you can name each one by a wish.

- This cutting and stripping machine features an automatic one-touch calibration function for cutting length.

- Wire run-out sensor gives the machine a stop signal while the wire is used out.

- Quickly change guide tubes and cutter blades.

- Transparent safety cover with sensor


Various options for specific applications

- Wire unwind & pre-feed machine, load range from 15 to 1500 KG

- Robot arm controlled by CS07

- Cable stacker, 1 meter to 6 meters

- V-blade, Multi-V blade, Radius blade

ModelJCW-CS07 Servo Motorized Belt Feed Multicore Cable Cut & Strip Machine
Function

Multicore cable, Single wire, Wire measuring, Cut into length, Full stripping, Partial stripping,  Wire lack sensor, Length correction

Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Cable diameter14 mm
Conductor cross-sections0.1 - 16 mm² [ AWG 28 - 6 ]
Cutting length ( L )0.1 - 999999 mm
Cutting length accuracy
0.002 x L
Stripping lengthLeading ( right ) side: 400 mm [ partial stripping ]
Trailing ( left ) side: 180 mm [ partial stripping ]
Production rate1200 pcs/h
Data library100 programs
Cutter headServo motorized system
Display7" color touchscreen, English / Chinese  [ other languages on request ]
Compatible peripheralsCable prefeeder, robot arm, cable stacker
Power supply
AC 220 V ± 10%, 50 / 60 Hz  [ 110V on request ]
Air supply0.4 - 0.7 MPa ( clean and dry air )
DimensionsMachine: L 700 x W 560 x H 450 mm
Wire straightener: 350mm
Weight80 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
