Ultra High-speed Cable Cutting Stripping Machine

JCW-CS22

Versatile machine, ideal solution for cutting stripping special cables

Effective for processing long cables, Ultra high-speed

Servo motorized wire stripping machine

Single pulling length 950mm, multi-pulling is available

PVC coated wire rope cutting stripping machine

Capable of cutting and stripping wire rope

Inquire Now

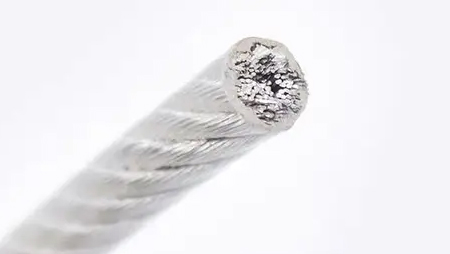

PVC Insulated Stainless Steel Wire Cut Strip

Ultra High-speed Cable Cutting Stripping Machine

JCW-CS22 is a pulling-type cable cut and stripping machine built with robust pulling capacity. Its strong pulling mechanism delivers reliable force to complete stripping work steadily.

Different from single-wire processing units, this model is designed to handle several wires at the same cycle, greatly lifting overall throughput for bulk harness production.

The integrated workflow combines feeding, cutting, stripping and pulling, reducing manual intervention and streamlining repetitive wire preparation jobs. It fits high-volume workshops pursuing stable output and better productivity, and highly suitable for insulated steel wires.

Model	JCW-CS22 Ultra High-speed Cable Cutting Stripping Machine
Function	Single wire, Multicore cable, ribbon cable, power cord, shield cable, wire rope. Wire measuring, Cut into length, Full stripping, Partial stripping, Cut depth, Cut speed, Feed speed.
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Cable diameter	Max 12 mm
Cutting length ( L )	45 - 99999.9 mm
Cutting length accuracy	0.002 x L
Stripping length	200 mm
Pull length	Single pulling 950mm, multi-pulling is available
Pull accuracy	± 1mm
Pull times	25 times per minute
OEM	Yes
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals	Wire pre feeder, conveyor belt
Rated power	1000 W
Power supply	AC 220 V ± 10%, 50 / 60 Hz
Dimensions	L 1750 x W 750 x H 1500 mm
Weight	280 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
