30mm press stroke
Variable-frequency drive
20 / 30 / 40 kN crimping force
Robust cast body, longer service life
Apply to all OTP type crimpapplicators

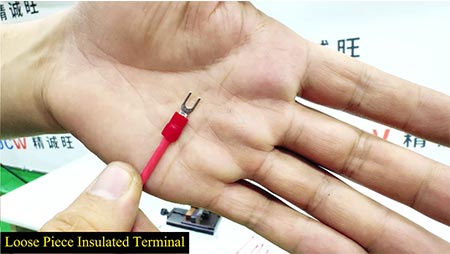

Open & closed barrel, loose piece terminals
Easy to change applicator
Increased productivity
JCW-2T CASTING Series
30mm press stroke
Variable-frequency drive
20 / 30 / 40 kN crimping force
Robust cast body, longer service life
Apply to all OTP type crimpapplicators
Open & closed barrel, loose piece terminals
Easy to change applicator
Increased productivity
JCW-2T CASTING Series Semi-automatic Terminal Crimping Machines
30MM stroke, robust casting body, 2T / 3T / 4T optional
Robust machine, high performance, and long service life
The JCW CASTING series bench-top presses are designed to achieve top crimping quality and longer service life, its cast body can withstand more crimping times and higher crimping force. The same crimping press is also applied to the fully automatic crimping machines. The JCW-2T CASTING is the most widely used model.

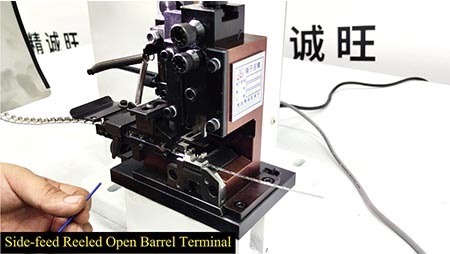

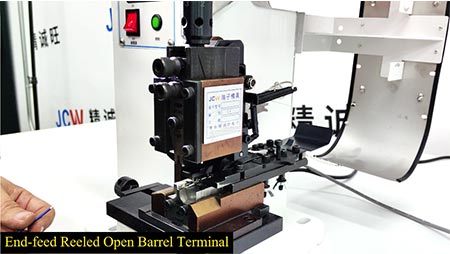

The JCW-2T CASTING terminal crimping machine is an excellent solution for wires up to 4mm². It is possible to mount most OTP-style crimp applicators, including loose piece, side-feed, and rear-feed types. With the fast changeover, you can switch different crimp applicators for processing open and closed barrel terminals in roll, also loose piece terminals.
Instead of a manual crimp tool, the JCW-2T terminal crimping machine ensures that correct crimping force is applied to the terminals when they are crimped onto wires, it also gives you greatly increased productivity.
Easy, fast, safe, quiet
The ideal speed for the crimping process can be individually adjusted to match the operator efficiency. The JCW-2T terminal crimping machine is activated by a foot pedal, the operator can use both hands to safely and accurately place the wires. Depending on operator proficiency it is possible to crimp every 1-2 seconds. This electric terminal crimping machine adopts a variable-frequency drive to minimize power consumption and cause low noise, compressed air is not needed.
The JCW-2T CASTING terminal crimping machine can be equipped with crimp force monitoring on request.
Each machine comes with power cords suitable for different countries, a foot pedal, a lamp for the working area lighting, and a reel holder bracket.
There are 3 available models ranging from 2 tons to 4 tons for crimping different connectors.
Model | JCW-2T CASTING Series Semi-automatic Terminal Crimping Machines |

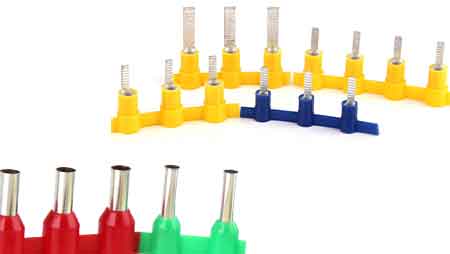

Function | OTP crimping applicators, side- / rear-feed terminals, closed barrel terminals, insulated terminals, loose piece terminals |
Conductor cross-section | 4 mm² [ customizable ] |
Crimping force | 20 KN [ 30 / 40 KN on request ] |
Stroke | 30 MM |
Rated power | 750 W [ 1100 W / 1500 W ] |
OEM | Yes |
Activation | Foot pedal |
Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
Dimensions | L 350 x W 300 x H 650 - 710mm |
Weight | 65 - 78 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
