1000N Motorized Pull-off Force Measuring Device

JCW-Q100

Smart, universal crimp pull-off force measuring device

Stable pulling and a precise measurement range up to 1000N

Both destructive and non-destructive test

Testing values are all programmable and pre-settable

4.3" color touch screen, user-friendly interface

Switch test unit between KG.F, Newton and pound by one touch

Inquire Now

JCW-Q100 1000N Motorized Pull-off Force Measuring Device

Motorized crimp pull force tester, reliable quality tool

Reliable and Precise

The JCW-Q100 wire crimp pull tester is a stepper motorized reliable quality tool for the wire harness industry. This pull force tester adopts a stepper motor, high-quality sensor, 4.3" color touch screen to ensure precise reading and clear presenting of the pull force.

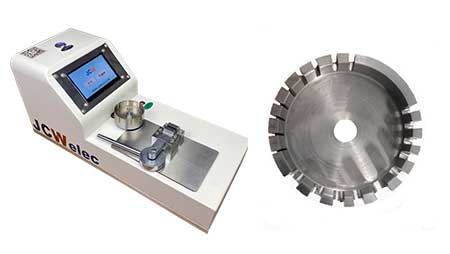

The versatile terminal holder accepts various wires and terminals of different sizes, the pulling speed is adjustable due to the speed-controlled motor, the robust wire clamp ensures smooth pulling and undisturbed flow of the measure.

We also supply special terminal holders, so that ring terminals, ferrules, flag terminals, and even ultra-fine wires can be tested on this pull tester.

Easy to use

Whether novice or professional, you can quickly use the JCW-Q100 pull-off force measuring device.

- Simple color touch screen and user-friendly display for easy programming & reading.

- Settable pulling speed, range from 10 to 400 mm per minute.

- Data library saves 16 programs.

- Changeable language.

Model	JCW-Q100 1000N Motorized Pull-off Force Measuring Device
Function	Pulling speed, destructive test, non-destructive test
Measuring range	Max 1000 N ( 99 KG.F )
Accuracy	0.5 %
Pulling speed	10 - 400 mm/min
Display	4.3" color touchscreen, English / Chinese [ other languages on request ]
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 430 x W 180 x H 210 mm
Weight	11 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
