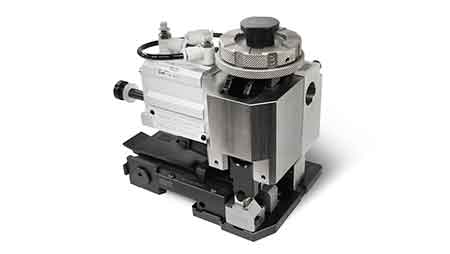

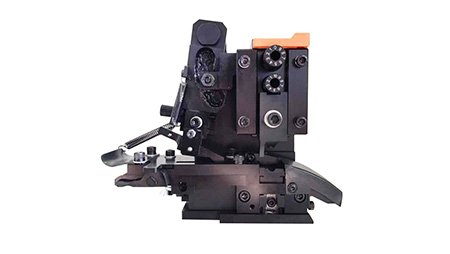

Side-feed / end-feed crimp applicator
Economically priced, simple operation
JCW-2TS Servo Series
Fully programmable
4.3" color touchscreen
30MM / 40MM stroke options
20-500KN crimping force options
Side-feed / end-feed crimp applicator
Economically priced, simple operation
JCW-2TS Series Servo Motorized Wire Crimping Machine
Fully programmable via color touch screen, 40MM stroke on request
Eay to use
This series of terminal crimping machines use servo motors to ensure high precision and offer huge flexibility. Instead of manual adjustment, the crimp height is settable via touchscreen. The JCW-2TS terminal crimping machine monitors and shows the real crimp height of each crimping, ensuring 100% crimping quality.
This servo motorized terminal crimping machine featured multi-terminal function, it allows continuous crimping same terminal onto wires at different cross-sections with no adjustment on crimping height. JCW offers full range of servo motorized terminal crimping machines, the crimping force is up to 500 KN for heavy-duty terminal crimping needs.
Fast, quiet, and precise crimping
The fully programmable JCW-2TS bench-top press is designed to achieve top crimping quality. The ideal speed for the crimping process can be individually adjusted to match the operator efficiency. The JCW-2TS terminal crimping machine is activated by a foot pedal. This electric terminal crimping machine adopts a servo drive to minimize power consumption and cause low noise.
Each machine comes with power cords suitable for different countries, a foot pedal, a lamp for the working area lighting, and a reel holder bracket.
We recommend customers submit cable and terminal specifications, so as to offer the most proper models to meet your processing needs.
Model | JCW-2TS Series Servo Motorized Terminal Crimping Machine |
Function | Side-feed terminal, End-feed terminal, Crimp height, Continuous crimping |
Crimping force | 20 - 500 KN |
Stroke | 20 - 100 KN : 30MM, 40 MM on request |
150 - 500 KN: 40 MM, 30MM on request | |
Rated power | 750 - 7500 W |
OEM | Yes |
Activation | Foot pedal |
Power supply | AC 220 - 380 V ± 10%, 50 / 60 Hz |
Dimensions | L 380-520 x W 380-540 x H 800-1030 mm |
Weight | 65 - 370 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
