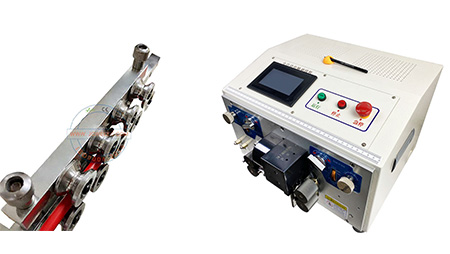

Entry-level Automatic Wire Cutting and Stripping Machine JCW-CS02

Ultra-compact high-speed cut & strip machine


Low investment, high benefit

As a proven capable entry-level machine, the JCW-CS02 is the most compact automatic wire cutting and stripping machine. You can get efficient wire processing equipment at a very low price, lightweight, robust and reliable, high-speed and multi-language options. The capacity to cut and strip 4,700 to 9,500 wires per hour will greatly improve your work efficiency. This cutting and stripping machine features an automatic one-touch calibration function for cutting length and middle strip capability.


The JCW-CS02 is suited for automatic cutting and stripping of single wire up to 6 mm², easily handling different insulation materials such as PVC, Teflon, Silicone, Low halogen, and Fiberglass, etc.


Different from other inferior machines you always see, we guarantee high reliability to all JCW machines with 14 years of real manufacture capability, continuous improvement, and professional experience.


Simple operation, high-performance

4.3" color touchscreen and user-friendly interface make the operation very simple, fast set-up and parameter changeover require no mechanical change except only guide tubes. Thanks to the microprocessor control, the parameters such as wire cutting length, stripping length, wire diameter, speed, etc. can be accurately entered and stored for future recall at any time. Whether novice or professional, you can quickly use the machine proficiently.


The JCW-CS02 wire cut and strip machine is equipped with high torque step motors, wear resistant metal rollers ( urethane rollers are optional for small wire and avoid leaving marks on insulation ), a robust cutter head, and a transparent safety cover. Each CS02 machine comes with a complete set of guide tubes, spare cutter blade, local power cord, and silicone touchscreen pen.


Build your automated production line

- Wire unwind & pre-feed machine, load range from 15 to 1000 KG

- Robot arm controlled by CS02, simple setting

- Conveyor belt ranging from 1 meter to 6 meters

ModelJCW-CS02 Wire Cutting and Stripping Machine
FunctionWire measuring, Cut into length, Full stripping, Partial stripping, Middle strip, Length correction
Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass
Conductor cross-sections0.03 - 6 mm²
Cutting length ( L )0.1 - 999999 mm
Cutting length accuracy0.002 x L
Stripping lengthFront ( right ) side: 50 mm [ Full stripping ]
Rear ( left ) side: 30mm [ Full stripping ]
Middle strip13 sections
Production rate4700 - 9500 pcs/h by 100mm wire length [ Single/double wire guide ]
Data library100 programs
Display4.3" color touchscreen, English / Chinese  [ Other languages on request ]
Compatible peripheralsWire prefeeder, robot arm, conveyor belt
Wire feedingMetal roller [ Urethane roller on request ]
Power supplyAC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply0.4 - 0.7 MPa ( clean and dry air )
DimensionsMachine: L 420 x W 400 x H 320 mm
Straightener: 250 mm
Weight28 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
