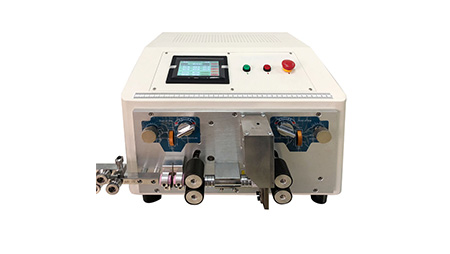

Automatic Battery Cable Cutting and Stripping Machine JCW-CS04

Robust and reliable, the most cost-effective model in the same class


Robust and Precise

The JCW-CS04 is a proven robust and precise table-top machine for cutting & stripping applications of heavy-duty battery cable up to 16mm², with a high level of precision ± 0.002 x wire length, meanwhile bringing very low noise. The JCW-CS04 is equipped with high torque hybrid step motors, subdivision drivers, wear-resistant steel rollers ( urethane rollers are optional for small wire and avoid leaving marks on insulation ), a robust cutter head, and a transparent safety cover.


Simple operation, high-performance

Whether novice or professional, you can quickly use the JCW-CS04 cable cutting & stripping machine proficiently. The control with touch screen has an intuitive user interface for simple and safe operation. Thanks to the microprocessor control, the parameters such as wire cutting length, stripping length, slitting length, wire diameter, speed, mark position, etc. can be accurately entered and stored for future recall at any time.


This cutting and stripping machine features an automatic one-touch calibration function for cutting length and middle strip capability. The wire run-out sensor gives the machine a stop signal while the wire is used out. Each CS04 machine comes with a complete set of guide tubes, spare cutter blade, local power cord, and silicone touchscreen pen.


Build your automated product line

- Wire unwind & pre-feed machine, load range from 15 to 200 KG

- Robot arm controlled by CS04, simple setting

- Conveyor belt ranging from 1 meter to 6 meters

- Thermal transfer printer

ModelJCW-CS04 Automatic Battery Cable Cutting and Stripping Machine
Function

Single wire, Wire measuring, Cut into length, Full stripping, Partial stripping, Wire run-out sensor, Length correction, Thermal transfer printer

Conductor cross-sections0.1 - 16 mm²
Cutting length ( L )0.1 - 999999 mm
Cutting length accuracy
0.002 x L
Stripping lengthFront ( right ) side: 50 mm [ Full stripping ]
Rear ( left ) side: 30 mm [ Full stripping ]
Production rate2000 pcs/h by 100mm wire length
Data library100 programs
Display4.3" color touchscreen, English / Chinese  [ other languages on request ]
Compatible peripheralsWire prefeeding machine, robot arm, conveyor belt
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
DimensionsMachine: L 460 x W 470 x H 350 mm
Wire straightener: 250mm
Weight35 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
