High-Efficiency Automatic 4 Wires Cutting Stripping Machine JCW-CS03F

High-speed cut & strip machine processing wires 4 x 1.5 mm²


High cost-effective, high benefit

The JCW-CS03F is an updated automatic wire cutting and stripping machine. It's designed to meet the high output cut and strip requirements of small wires. The capacity to cut and strip 16,000 wires per hour will greatly improve your work efficiency. This cutting and stripping machine features an automatic one-touch calibration function for cutting length and middle strip capability.


The JCW-CS03F is suited for automatic cutting and stripping of single wire up to 1.5 mm², easily handle different insulation material such as PVC, Teflon, Silicone, Low halogen, and Fiberglass, etc.


Simple operation, high-performance

4.3" color touchscreen and user-friendly interface make the operation very simple, fast set-up and parameter changeover require no mechanical change except only guide tubes. Thanks to the microprocessor control, the parameters such as wire cutting length, stripping length, wire diameter, speed, etc. can be accurately entered and stored for future recall at any time. Whether novice or professional, you can quickly use the machine proficiently.


The JCW-CS03F wire cutting and stripping machine is equipped with high torque step motors,  wider urethane rollers ( steel rollers are optional for offering higher clamping force ), robust wider cutter head and transparent safety cover. Each CS03F machine comes with a complete set of guide tubes, spare cutter blade, local power cord, and silicone touchscreen pen.

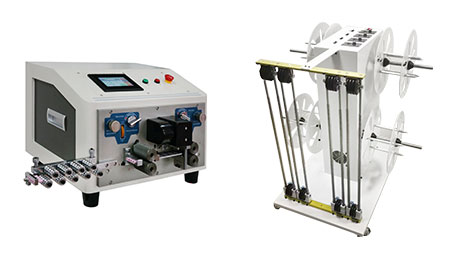

Build your automated production line

- Wire unwind & pre-feed machine, load range from 15 to 1000 KG

- Robot arm controlled by CS03F

- Conveyor belt ranging from 1 meter to 6 meters

ModelJCW-CS03F Automatic 4 Wires Cutting and Stripping Machine
FunctionWire measuring, Cut into length, Full stripping, Partial stripping, Middle strip, Length correction
Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass
Conductor cross-sections0.03 - 1.5 mm²
Cutting length ( L )0.1 - 999999 mm
Cutting length accuracy0.002 x L
Stripping lengthFront ( right ) side: 40 mm
Rear ( left ) side: 30mm
Production rate16000 pcs/h by 50mm wire length
Data library100 programs
Display4.3" color touchscreen, English / Chinese  [ Other languages on request ]
Compatible peripheralsWire prefeeder, robot arm, conveyor belt
Wire feedingMetal roller [ Urethane roller on request ]
Power supplyAC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply0.4 - 0.7 MPa ( clean and dry air )
DimensionsMachine: L 460 x W 470 x H 350 mm

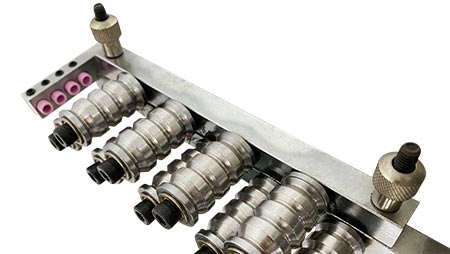

Straightener: 300 mm
Weight33 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
