Horizontal - Unwind Wire Roll

Horizontal - Unwind Wire Roll

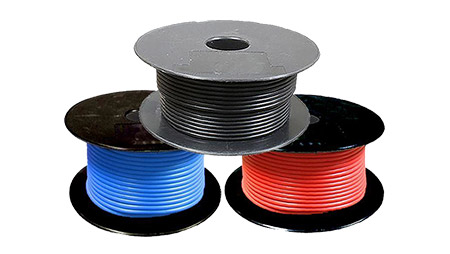

Horizontal - Despool Wire Spool

Horizontal - Despool Wire Spool

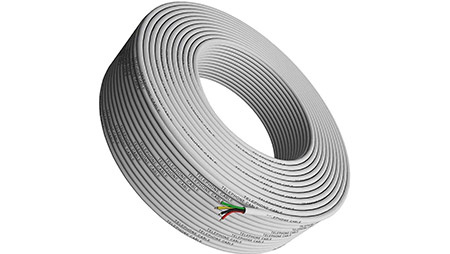

Vertical - Cable Roll

Vertical - Cable Roll

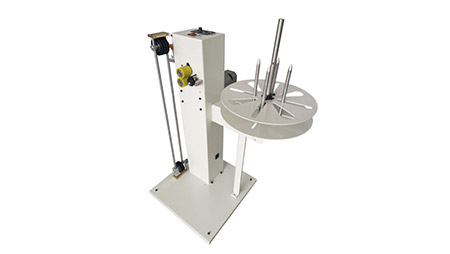

JCW-WP01 Universal Single Spool Wire Prefeeding Machine

Economical wire prefeeder, active cable dereeler


The JCW-WP01 universal wire prefeeding machine is for both loose and reel mounted wire, it's an ideal equipment for tension-free prefeeding to an automatic wire and cable processing machine.

This active cable dereeler is equipped with an adjustable dereeling motor,  which is activated with a pendulum arm, the feed speed automatically adjusts to the actual requirement of any wire and cable processing machine, including the cutting machine, cutting and stripping machine, automatic terminal crimping machine, etc.


When ordering wire prefeeding machines, we recommend customers submit cable samples or images, also the cutting length and wire processing machine models, so as to offer the most proper models to meet your processing needs.

Model

JCW-WP01 Economic Single Spool Cable Prefeeding Machine

Wire diameter0.5 - 5 mm
Wire spool diameter400 mm
Wire spool width250 mm
Wire spool weight15 KG
Wire storage1 m
Feeding speed1 m / s
Rated power120 W
Power supplyAC 110 - 220V, 50 / 60 Hz  [ 110V on request ]
DimensionsL 600 x W 500 x H 950 mm
Weight45 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
