JCW-WP09 Automatic High-speed Horizontal Cable Dereeler

Feed speed 4m/s, controllable by downline machines

Stable cable unwinder & prefeeder

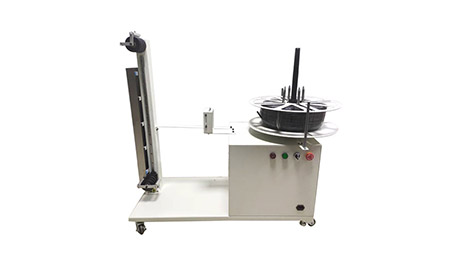

The JCW-WP09 horizontal cable prefeeding machine is a free-standing and electrical prefeeding machine designed to pull wire and cable from big reels weighing up to 50 kg, reel diameter up to 500 mm.

These cable feeding units provide constant tension to downline cable processing machines, they are equipped with moveable pulleys which respond to the typical intermittent starting and stopping actions associated with automatic wire processing machines. Furthermore, the JCW-WP09 can be connected with the wire processing machines, in this way, they are more synchronized. 4 rollers make the JCW-WP09 a mobile cable feeding unit, so as to work anywhere easily.

This active cable dereeler is equipped with an adjustable dereeling motor,  which is activated with a pendulum arm, the feed speed automatically adjusts to the actual requirement of any wire and cable processing machine, including the cutting machine, cutting and stripping machine, automatic terminal crimping machine, etc.

When ordering wire prefeeding machines, we recommend customers submit cable samples or images, also the cutting length and wire processing machine models, so as to offer the most proper models to meet your processing needs.


JCW-WP09 Automatic Horizontal Cable Feeding Machine

Wire diameter0.5 - 10 mm
Wire reel diameter500 mm
Wire reel width350 mm
Wire reel weight50 KG
Wire storage3 m
Rated power750 W
Power supplyAC 220V, 50 / 60 Hz  [ 110V on request ]
DimensionsL 1250 x W 700 x H 1050 mm
Weight96 KG

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
