50KG Load Motorized Cable Prefeeder

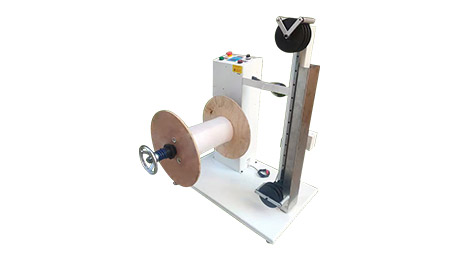

JCW-WP02 50KG Load Motorized Wire Prefeeder

Heavy-duty wire despooler, controllable by downline machine

Wire stripping machines are designed to do the precise measuring, cutting and stripping, but are not designed for pulling heavy reels or spools.  When pulling spools weighing 20 kgs or more directly from the stripper, this can shorten the life of the stripper’s wire drive mechanism.  The cable prefeeder helps protect and prolong the service life of your wire stripper as it absorbs all the stress that comes from pulling and tugging wire off a spool, thus protecting your wire processor investment.

The JCW-WP02 heavy-duty cable dereeling and prefeeding machine is a free-standing, electrical prefeeding machine designed to pull wire and cable from reels weighing up to 50 kg. This cable feeding unit provides constant tension to downline cable processing machines, it is equipped with a moveable pulley which allows the JCW-WP02 to respond to the typical intermittent starting and stopping actions associated with automatic wire processing machines. Furthermore, the JCW-WP02 can be connected with the wire processing machines, in this way, they are more synchronized. 4 rollers make the JCW-WP02 a mobile cable feeding unit, so as to work anywhere easily.

This active cable dereeler is equipped with an adjustable dereeling motor,  which is activated with a pendulum arm, the feed speed automatically adjusts to the actual requirement of any wire and cable processing machine, including the cutting machine, cutting and stripping machine, automatic terminal crimping machine, etc.

When ordering wire prefeeding machines, we recommend customers submit cable samples or images, also the cutting length and wire processing machine models, so as to offer the most proper models to meet your processing needs.
