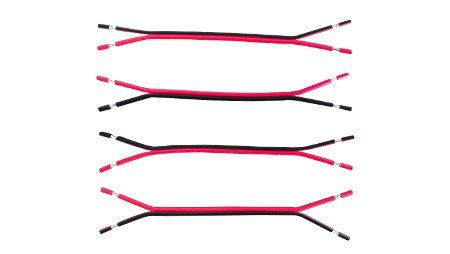

UL2468 2-Core Red Black Cable Slit-Cut-Strip

UL2468 2-Core Red Black Cable Slit-Cut-Strip

JCW-CS06LED 2 Cores Twin Flat Cable Split Cut and Strip Machine

Specially made cable split mechanism, precise separation, high speed


Professional slit cut & strip machine

To replace traditional manual pulling apart and meet high-level industrial requirements, we developed the JCW-CS06Z cable slitting, cutting, and stripping machine. The JCW-CS06Z is specifically for processing 2 cores twin cable and zip cord. It allows cable splitting, cutting, and dual-end stripping in one work cycle. The splitting length is programmable, and the splitting unit is specially made for specific cable gauge, it guarantees the splitting precision with no damage to the insulation and conductor.

LED strips extension cable is ideal for all single color LED strip light, low-voltage single-color led strip, light bulb, lamp. It is widely used for various DC electrical hookups, low voltage cables, 12V DC, 24V DC, low-loss in-home or car stereo installs. Great for in-home applications as well as automotive, schools, churches, auditoriums or business settings.


Easy to use

The standard model comes with an English display, the machine language is customizable. A user-friendly interface and color touchscreen make the operation so accurate and simple.

- The control with touch screen has an intuitive user interface for simple and safe operation.

- The parameters such as wire cutting length, stripping length, wire diameter, speed, etc. can be accurately entered and stored for future recall at any time.

- Data library saves 100 programs, you can name each one by a wish.

- This cutting and stripping machine features an automatic one-touch calibration function for cutting length.

- Wire run-out sensor gives the machine a stop signal while the wire is used out.

- Quickly change guide tubes and cutter blades.


Various options for specific applications

- Wire unwind & pre-feed machine, load range from 15 to 200 KG

- Robot arm controlled by CS06

- Cable stacker, 1 meter to 6 meters

- V-blade, Multi-V blade, Radius blade, Flat blade

Model

JCW-CS06Z 2 Core Twin Flat Cable Slitting Cutting and Stripping Machine

Function

Single wire, Zipcord, Wire measuring and slitting, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Wire run-out sensor, Length correction

Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Cutting length ( L )0.1 - 999999 mm
Cutting length accuracy
0.002 x L
Stripping lengthFront ( right ) side: 150 mm [ partial stripping ]
Rear ( left ) side: 70 mm [ partial stripping ]
Middle strip13 sections
Production rate2500 pcs/h by 100mm wire length
Data library100 programs
Display4.3" color touchscreen, English / Chinese  [ other languages on request ]
Cable feeding
6 rollers
Compatible peripheralsCable prefeeding unit, robot arm, cable stacker
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply0.4 - 0.7 MPa [ clean and dry air ]
DimensionsMachine: L 560 x W 470 x H 370 mm
Wire straightener: 250mm
Weight45 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
