2 Core Ribbon Cable Cutting Slitting Stripping Machine

JCW-CS03Z

External ribbon cable slitter combined

Low-budget automatic ribbon cable processing machine

Fully programmable cutting, slitting and stripping machine

A robotic arm is optional to automate wire production

Inquire Now

2-Core Cable Slit Strip Machine

Model	JCW-CS03Z 2 Core Ribbon Cable Cutting Slitting Stripping Machine

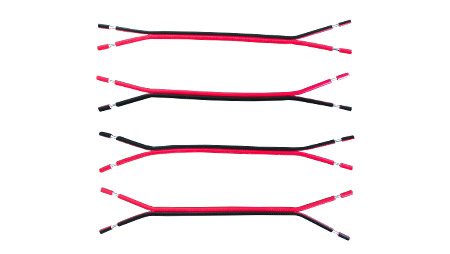

Function	2 cores ribbon cable, 3 cores ribbon cable, Wire measuring, Slitting, Cut into length, Full stripping, Partial stripping, Mid-stripping, Length correction
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Stripping length	Front ( right ) side: 50 mm [ Full stripping ]
Stripping length	Rear ( left ) side: 30 mm [ Full stripping ]
Middle strip	13 sections
Production rate	2000 - 3000 pcs/h
Data library	100 programs
Display	4.3" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals	Wire pre-feeder, robot arm, conveyor belt, safety guard
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 480 x W 470 x H 350 mm
Weight	33 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
