JCW-322A Electro-pneumatic Wire Twisting Machine

Versatile electric wire twister

Braided Shield Cable Preparation

Braided-shield cables have so many advantages, the shield cables provide a flexible method of electrically shielding a cable, and the braid also adds strength to the cable. However, the disadvantage of using a braided shield is the time and effort required to prepare the cable to attach the connector.

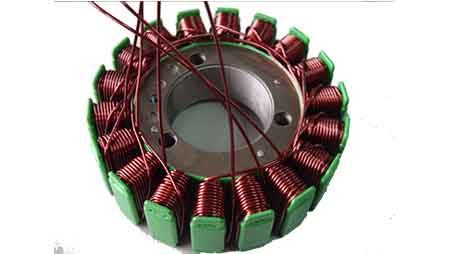

The JCW-322A electro-pneumatic wire twisting machine is perfect partner of JCW-322 braid brusher. This table-top wire twisting machine is designed mechanical twisting of shield copper wires, stranded wires, the enameled copper wire for transformers, inductor, motors also belong to the processing range, all that needed is customized wire gripper.


JCW-322A Electro-pneumatic Wire Twisting Machine

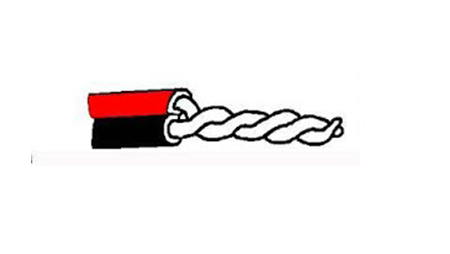

Braided metal shielding, stranded wire, enameled copper wire, two-way rotation, adjustable twisting speed

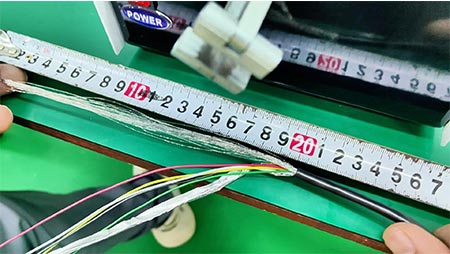

Twisting length5 - 80 mm [ 200mm is customizable ]
Conductor cross-section0.1 - 2 mm²
Rated power10 W
Air supply0.3 - 0.6 MPa
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
DimensionsL 340 x W 190 x H 170 mm
Weight12 KG

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
