Cable Braid Shielding Brushing & Twisting Machine

JCW-322D

Use for de-braiding and twisting cable shields

Brushing length up to 35 mm max

Twisting length up to 80 mm max

Adjustable brush spacing for max 25 mm diameter cable

Brush speed adjustment for shield de-interlacing

Quickly changeable brushes

Lightweight, space-saving design

Inquire Now

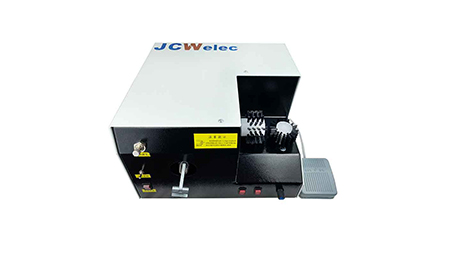

JCW-322D Cable Braid Shielding Brushing & Twisting Machine

3 brushes, shield brushing and splitting, retracted twisting unit

Braided Shield Cable Preparation

Braided-shield cables have so many advantages, the shield cables provide a flexible method of electrically shielding a cable, and the braid also adds strength to the cable. However, the disadvantage of using a braided shield is the time and effort required to prepare the cable to attach the connector.

The JCW-322D electro-pneumatic braid brushed and twister integrates wire brushing and twisting into one machine to improve the processing efficiency of small shield wires and save costs. A third brush is used to split the unbraided shield wire, the operator can quickly move to downline twisting.

This versatile brushing and twisting machine can be used as a respective twisting machine to work with JCW-322B to process large cables.

Model	JCW-322D Cable Braided Shielding Brushing Machine
Function	Braided metal shielding, two-way rotation, adjustable brush spacing
Brushing speed	0 - 6000 RPM
Brushing length	5 - 80 mm
Cable diameter	0.1 - 25 mm
Rated power	100 W
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 320 x W 220 x H 260 mm
Weight	12 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
