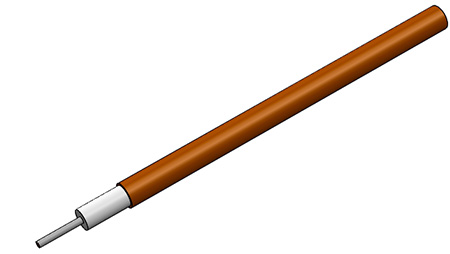

Semi-rigid Coax Cable Stripping Machine

Semi-rigid Coax Cable Stripping Machine

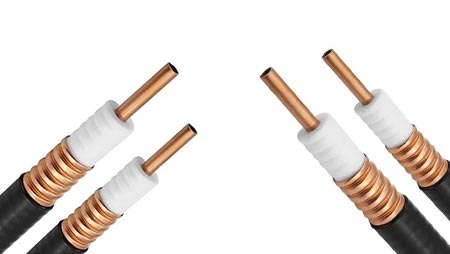

Coaxial Feeder Cable Stripping

Coaxial Feeder Cable Stripping

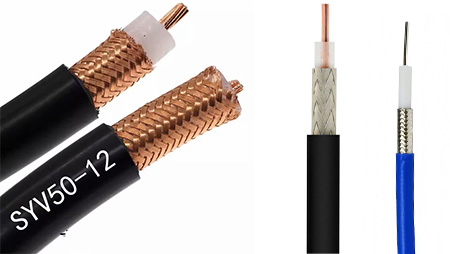

RG402 / RG58 / SYV 50 Series Coax Cable Processing

RG402 / RG58 / SYV 50 Series Coax Cable Processing

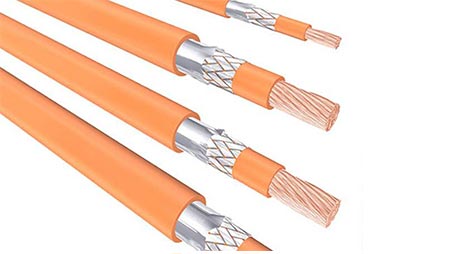

EV High-voltage Cable Stripping

EV High-voltage Cable Stripping

JCW-S600B Coaxial Cable Stripping Machine

Rotary stripping, 9 stripping steps, 15mm cable


High cost-effective

The JCW-S600B coaxial wire stripping machine is very cost-effective in JCW-S600 stripping machine family. It is reliable for processing various single wire, multiconductor cable, coaxial, triaxial cable, and conductors with braided insulation.


The JCW-S600B stripping machine is equipped with a centralizer, you don't need to do calibration after changing new blades, this ensures high precision and simple operation.


This coaxial wire stripper uses 4 pieces of blades, it's designed to meet tough precision requirements. The rotating stripping head cut the entire circumference of the insulation with precision, which minimizes the force needed for pull-off and maximizes the service life of the blades.


Reliable multistep stripping

The JCW-S600B coax stripping machine features multistep stripping up to a max of 9 steps, the processing steps for multi-layered cable can be programmed in any desired order. The cable clamping diameter, stripping position and pull-off length of each layer are all programmable via a user-friendly color interface, with no need for any mechanical adjustments when changing wire sizes.


Easy to operate

Each of the JCW-S600B coax & wire stripper comes with a bilingual interface, English, and Chinese. The machine language can be changed by customers' requirements to make its operation easier. The intuitive display assists the operator with setting the processing parameters. Parameters such as cut duration, pull-off speed, wire diameter, etc. are all settable respectively.


The JCW-S600B coax stripping machine is suitable for processing cables with hard insulation, some semi-rigid cables also belong to its processing range.


The JCW-S600 machines are ideal for low-volume, quick-changeover applications also high-volume production needs, offering the best possible productivity and flexibility.

ModelJCW-S600B Rotary Coaxial Cable Stripping Machine
FunctionCoaxial cable, multistep stripping, rotary stripping, full stripping, partial stripping.
Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Cable diameter1.5 - 15 mm
Stripping length 0.1 - 85 mm
Cutting depth increment
0.01 mm
Blades4 pcs
Stripping steps9
Production rate400 - 600 pcs/h
CentralizerYes
Data libraryYes
OEMYes
Display4.3" color touchscreen, English / Chinese  [ other languages on request ]
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
DimensionsL 640 x W 230 x H 330 mm
Weight35 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
