Wide range, fast stripping
A single set of V-blade for various wires and cables
Compact design, space-saving, portable
Wire range 2.0 to 35 mm²
Stripping length up to 30mm
Safety cover protects the operator

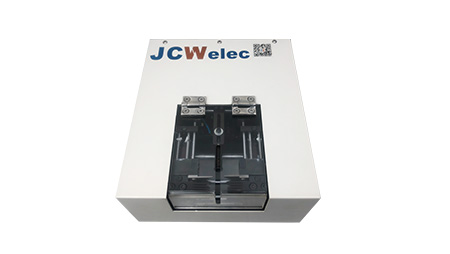

JCW-S35 Semi-auto Pneumatic Cable Stripping Machine
Processing 2.0-35mm² wire and cable with a single set of V-blade
The JCW-S35 pneumatic wire and cable stripping machine is designed to process single wire and multicore cable, all that is needed to operate the machine is a compressed air connection. This wire stripper is an ideal model for multicore cable with inner wires at different diameters.
The smart design allows for processing wires with a single set of V-blade, change blade is unnecessary to strip wires up to 35mm².
The machine can perform both full and partial stripping by simple adjustment.
The JCW-S35 pneumatic wire stripper is activated by the trigger sensor, the wire processing is started once the wire end touches the trigger sensor.
|Model||JCW-S35 Semi-auto Pneumatic Cable Stripping Machine|
|Function||Full stripping, partial stripping, no blade change needs|
|Raw material||PVC, Teflon, Silicone, Low halogen, Fiberglass, etc|
|Conductor cross-sections||2 - 35 mm² [ AWG 2 - 14 ]|
|Stripping length||2 - 30 mm|
|Air supply||0.5 - 0.8 MPa ( clean and dry air )|
|Dimensions||L 360 x W 290 x H 180 mm|
Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
