JCW-C05
3 - 28 mm diameter range
Non-slitted corrugated tubes, plastic tubes
7" color touchscreen, saves 100 programs
Belt feeding system, top quality 40mm width belt
Sharp blade, high-speed cutting, straight cut section
Automatic one-touch calibrate the cutting length
High torque stepper motor, subdivision drive
Material run-out sensor
Safety door sensor
JCW-C05 Automatic Corrugated Pipe Cutting Machine
Straight cut, precise feeding, 3 - 28 mm diameter

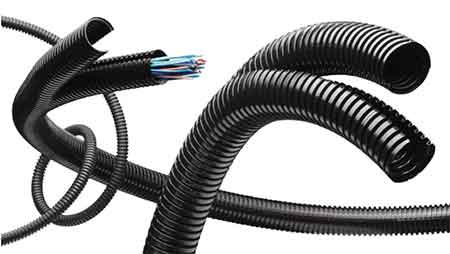

Non-slitted insulating hose corrugated tube
The JCW-C05 automatic pipe cutting machine is specially designed to measure and cut corrugated tubing. This cutting machine is also capable to cut PVC tubes. The machine is equipped with 3 sets of tube guiders, φ10mm / φ20mm / φ30mm.
This cutting machine uses a common knife blade to offer a beautiful cutting surface, the cut is carried out in vertical mode. High-speed cutting will not cause deformation of the corrugated tube.
Ultra-wide 40mm belt ensures precise feeding.
Efficient & intelligent
Driven by high-efficiency stepper motors, the JCW-C05 cutting machine has high-efficiency processing capabilities. The JCW-C05 tube cutting machine is equipped with a transparent safety cover, which provides a clear vision. When it's open, the machine will stop working automatically and immediately. This machine is equipped material run-out sensor, the machine will automatically stop when there is a shortage of material.
| Model | JCW-C05 Automatic Corrugated Pipe Cutting Machine |
| Function | Non-slitted corrugated tube, plastic tubes, cut speed, feeding speed, save the program, calibrate the cutting length |
| Raw material | PA, PE, PU, PTFE, rubber, and silicon tubes |
| Tube diameter | 3 - 28 mm |
| Guider | 10 / 20 / 30 mm |
| Cutting length ( L ) | 5 - 99999 mm |
| Cutting length increment | 0.1 mm |
| Cutting length tolerance | ± 0.1 mm [ material with no elasticity ] |
| Production rate | 7800 pcs /h by 100 mm length |
| Data library | 100 programs |
| Display | 7" color touchscreen, English / Chinese [ other languages on request ] |
| OEM | Yes |
| Power supply | AC 110 - 220V + 10 %, 50 / 60 Hz |
| Dimensions | L 670 x W 520 x H 520 mm |
| Weight | 75 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
