Pneumatic Wire Rope Cutting Machine

JCW-C10B

Max 50mm O.D cable

Simple operation, foot pedal

Max cutting stroke 50mm

Robust model, low maintenance

Safety cover, safe operation

Air regulator

Inquire Now

Manual Pneumatic Cutting Machine

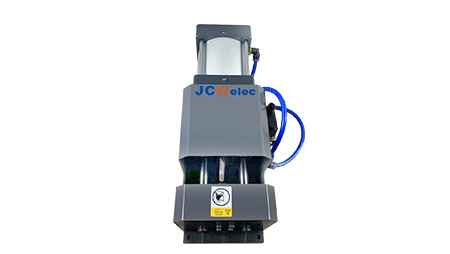

JCW-C10B Horizontal Pneumatic Cable Cutting Machine

Horizontal cutting, 10 mm cable

The powerful pneumatic cable cutting machine JCW-C10B is a versatile cutting machine. This cutting machine is activated by a foot pedal. The operator handles the cable with two hands. Robust metal material safety cover offers all-around protection. Space-saving and robust design, low maintenance.

Model	JCW-C10B Horizontal Pneumatic Cable Cutting Machine
Function	Horizontal cutting, air regulator, adjustable cutter stroke
Cable O.D	50 mm
Cross-section range	V1: max 50 mm² V2: max 100 mm²
Cylinder diameter	V1: 60 mm V2: 90 mm
Air supply	0.4 -0.7 MPa
Power supply	AC 110 - 220V + 10 %, 50/60 Hz
Dimensions	L 550 x W 270 x H 200 mm
Weight	V1: 27 KG V2: 33 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
