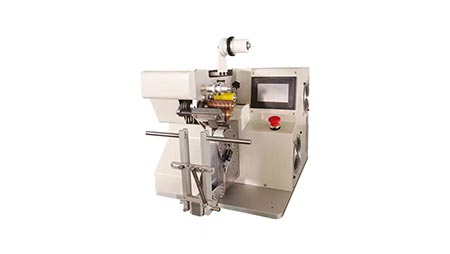

Spot Taping Short Wire by Locate Device

Spot Taping Short Wire by Locate Device

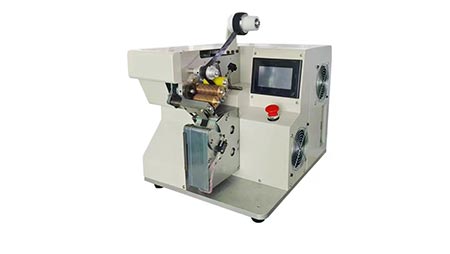

Fully Electric Spot Taping Machine

Fully Electric Spot Taping Machine

JCW-T01E Fully Electric Cable Spot Taping Machine

Cable bundling, insulating, and marking. Covering various types of tapes


Fully motorized round material spot taping machine

Unlike the classical wire taping machine T01, the JCW-T01E workbench taping machine requires no compressed air. The wrapping turns, feeding length and other parameters are all programmable via the color touch screen.

To ensure perfect taping, there are 2 sizes of brushes for selection, for narrow and wide tapes, and extra locating devices can be added. Please inform our sales your tape width, we will recommend proper solutions.



Model

JCW-T01E Fully Electric Spot Taping Machine

FunctionBundling, insulating, and marking. Fully programmable. PVC tape, acetate cloth electrical tape, brown paper tape, etc
Tape width5 - 45 mm [ customizable ]
Brush width20mm / 30mm on request for short taping needs
Taping length50 - 99 mm
Tape roll diameter
32 - 100 mm [ customizable ]
Wire harness diameter1 - 8 mm
Production rate1200 - 2000 pcs / h
Coincidence accuracy0.5 mm
Power supplyAC 110 - 220 V, 50 / 60 Hz
DimensionsL 370 x W 495 x H 530 mm
Weight45 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
