JCW-T04 PLC Control Servo Motorized PTFE Taping Machine

 1/8" to 2" NPT, BST, and Metric. Much higher quality, much lower cost.


Best sealing ever

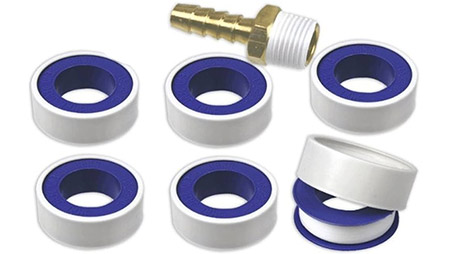

Everyone knows the importance of reliable sealing of pipes, fittings, valves, and other threaded parts. The JCW-T04 PTFE taping machine is designed to replace hand wrapping. This taping machine runs PTFE tape deep into the thread root to assure it will not get unwrap during storage or transportation.

The JCW-T04 automatic PTFE thread tape wrapping machine applies to American Tapered, British Straight, or Metric Threads. Suitable for all screwed joints, pipe threads, valve fittings, plumbing fittings, water purifier connectors, hydraulic oil pipe fittings, tracheal joints.


High efficiency, high quality, reduced cost

Due to high-precision PLC control system and servo motors, the JCW-T04 thread tape wrapping machine offers ultra-short cycle time. It is capable to finish 2-3 wraps in 2-3 seconds. The adjustment can be finished quickly for different fittings.

This machine can replace 5 manual workers, and the wrapping quality is always stable. Common reverse wrapping in hand-wrapped fittings has been eliminated on this machine, which ensures no leaks.

Model

JCW-T04 PLC Control Servo Motorized PTFE Taping Machine

Fitting range 1/8 to 2” NPT
Cycle time2-3 seconds ( 2-3 wraps )
Tape roll diameter
36 - 100 mm
Air supply0.5 - 0.6 MPa ( clean and dry air )
Power supplyAC 110 - 220V, 50 / 60 Hz
Rated power800 W
DimensionsL 450 x W 350 x H 580 mm
Weight56 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
