Loose nylon zip tie
Automatic feeding, self-locking, and cutting
Apply to all regular and special zip ties
Tying tension is adjustable by turning a knob
Cutting length is programmable via 7" HMI
Hidden feeding unit, safe operation
JCW-T06
Loose nylon zip tie
Automatic feeding, self-locking, and cutting
Apply to all regular and special zip ties
Tying tension is adjustable by turning a knob
Cutting length is programmable via 7" HMI
Hidden feeding unit, safe operation

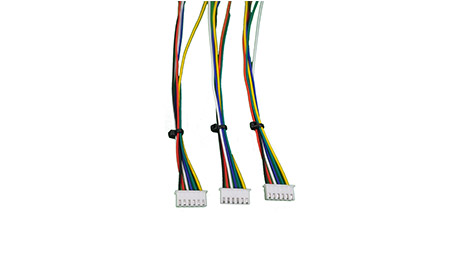

Regular wire

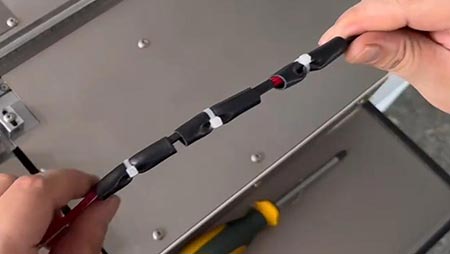

Wire with heat shrinkable tubing
JCW-T06 Automatic Nylon Zip Cable Tie Self-locking and Cutting Machine
Loose zip tie, short cycle time, programmable, reliable, 98% successful taping
Solution of locking loose type nylon zip tie
The JCW-T06 zip tie machine is suitable for most regular zip ties, the high-quality vibrate bowl adopts zip ties of different lengths. This machine will align and feed the loose zip ties automatically, the energy-saving and environmentally friendly vibrating plate will automatically sleep if it does not work within the set time.
This nylon zip tie machine adopts a 7" color touchscreen, the operator can set various parameters exactly in seconds. The cutting length is settable due to different processing requirements. Banding tension is adjustable by turning a knob.
The feeding gear is built inside the enclosure, which eliminates the possibility to damage the operator's fingers. The operator only needs to place another harness after an ultra-short cycle time of 0.8 seconds.
Customizable solutions
We are capable to customize this machine for using all kinds of special nylon zip ties. If you have a project, please contact us, our experienced engineers will offer high-efficiency solutions.
Model | JCW-T06 Automatic Nylon Zip Cable Tie Self-locking and Cutting Machine |
Nylon tie range | Regular: L 60 / 80 / 100 / 120 / 150 x W 2.5 x T 1.0 mm |
Customizable: L 150 / 160 / 180 / 200 x W 3.6 x T 1.3 mm | |
Wire harness diameter | 1.0 - 40 mm |
Cycle time | 0.8 second |
Power supply | AC 110 - 240V, 50/60 Hz [ One key switch ] |
Dimensions | L 1200 x W 550 x H 740 mm |
Weight | 170 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
