Touchscreen, English interface
Simple and exact input parameters
Tape width range 10 - 40 mm
Tape feeding speed 1 - 600 mm / s
Various tapes without barrier paper, including PET, PVC, etc.

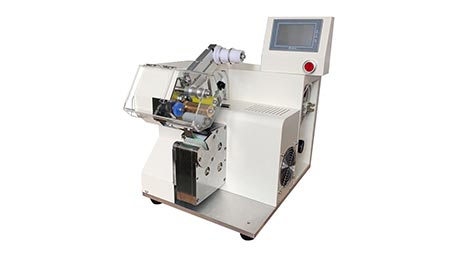

JCW-T01 Wire Spot Taping Machine

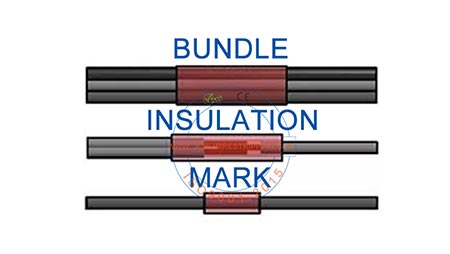

Cable bundling, insulating, and marking
Versatile tape wrapping machine
The versatile bench-top spot taping machine JCW-T01 is designed for wire, cable and wire harness bundling, insulating, and marking. This taping machine accepts tape widths of 10 to 40mm and tape lengths of 50 to 99 mm, it is capable to process wires of 25mm diameter.
The JCW-T01 tape wrapping machine is equipped with a pneumatic pre-feeding system, this ensures smooth taping with no corrugation.
This taping machine is only used for spot taping, also known as " point taping ".
JCW-T01 Wire and Wire Harness Spot Taping Machine
|Function||Bundling, insulating, and marking|
|Tape width||10 - 40 mm [ 60mm is customizable ]|
|Taping length||50 - 99 mm|
|Tape roll diameter||32 - 100 mm [ customizable ]|
|Wire harness diameter||max 25 mm|
|Production rate||1500 - 2600 pcs / h|
|Air supply||0.4 - 0.6 MPa ( clean and dry air )|
|Power supply||AC 110 - 220 V, 50 / 60 Hz|
|Dimensions||L 350 x W 500 x H 530 mm|
Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
