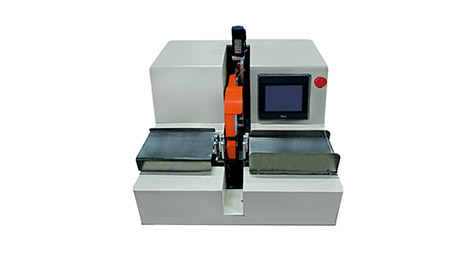

Custom Automatic Spot Taping Machine

JCW-T01D

Automatically wrapping and cutting tape

Programmable wrapping turns, taping position

Covering a wide range of tape types

Acetate cloth tape, aluminum foil tape, duct tape

Masking tape, PVC tape, fleece tape, transparent tape

Servo motor, 7" color touch screen

Inquire Now

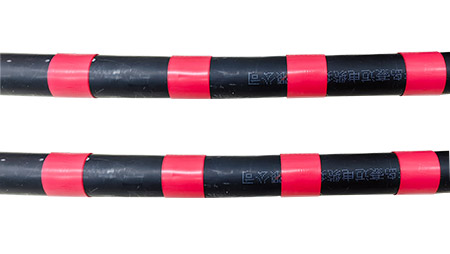

Automatic Spot Taping

Model	JCW-T01D Custom Automatic Spot Taping Machine
Function	Bundling, insulating, marking
Tape width	10 - 20 mm
Tape roll diameter	I.D. 38 mm, O.D. 96 mm
Capacity	Square: max 10 x 20 mm Round: max 20 mm diameter
Cycle time	8 - 30 seconds
Display	7" HMI, English / Chinese
Air supply	0.4 - 0.6 MPa ( clean and dry air )
Power supply	AC 110 - 220 V, 50 / 60 Hz
Dimensions	L 760 x W 630 x H 500 mm
Weight	65 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
