New model in JCW's spot taping family
Compact bundling head
Transparent safety cover
Safety cover sensor, well protection
Set winding turns and speed easily
JCW-T05CN
New model in JCW's spot taping family
Compact bundling head
Transparent safety cover
Safety cover sensor, well protection
Set winding turns and speed easily

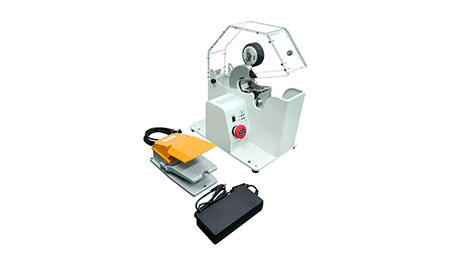

Model | JCW-T05CN Versatile Semi-auto Cable Taping Machine |
Wire harness diameter | 5 - 35 mm default [ 3 - 25 mm is optional ] |
Tape width | 5 - 25 mm default [ 5 - 20 mm is optional ] |
Tape roll diameter | Inner diameter: 38mm ( 1.5 inch ) default, 25mm / 32mm optional |
Outer diameter: max 110mm | |
Wrap speed | 150 - 500 RPM |
Safety cover & sensor | Yes |
EM-STOP button | Yes |
Safety foot pedal | Yes |
Power supply | Adapter, AC 110 - 240V, 50 / 60 Hz |
Machine dimensions | L 200 x W 300 x H 338 mm |
Package dimensions | L 250 x W 350 x H 400 mm |
Machine weight | 6.5 KG |
Package weight | 8.5 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
