Touchscreen, English interface
Simple and exact input parameters
Specific designed for spot taping flat ribbon
Various tapes without barrier paper, including PET, PVC, Masking tape, etc.
JCW-T01F
Touchscreen, English interface
Simple and exact input parameters
Specific designed for spot taping flat ribbon
Various tapes without barrier paper, including PET, PVC, Masking tape, etc.

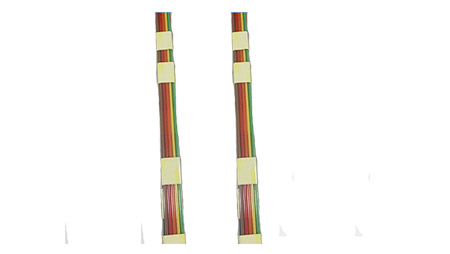

Flat Cable Spot Taping
Model | JCW-T01F Ribbon Cable & Wire Harness Spot Taping Machine |
Function | Bundling, insulating, and marking |
Tape width | 5 - 15 mm |
Cable width | 1 - 10 mm [ customizable ] [ one machine for one size only ] |
Taping accuracy | ± 0.5mm |
Production rate | 1200 - 1800 pcs/hr |
Display | 4.3" color touchscreen, English / Chinese [ other languages on request ] |
Optional device | Paper coiler, location device. |
Air supply | 0.6 MPa ( clean and dry air ) |
Power supply | AC 110 - 220 V, 50 / 60 Hz |
Dimensions | L 260 x W 500 x H 500 mm |
Weight | 20 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
