PLC control, servo motor driven, fully electric
Fully programmable: wrapping speed, pulling speed
Overlap width is settable
Various taping methods for selection
Compatible with tapes of various materials
JCW-T10
PLC control, servo motor driven, fully electric
Fully programmable: wrapping speed, pulling speed
Overlap width is settable
Various taping methods for selection
Compatible with tapes of various materials

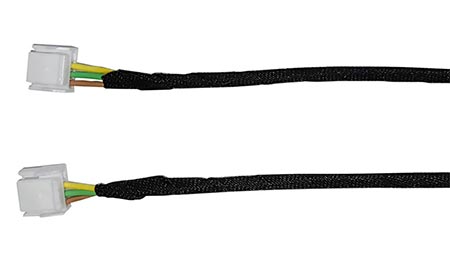

Wrap Tape Onto Wire Harnss
| Model | JCW-T10 Automatic Roller Feed Wire Taping Machine |
| Tape material | PVC, Felt tape, Duct tape, Heat Resistant Tape, Conductive tape, etc |
| Tape width | 5 - 20 mm [ customizable ] |
| Wire harness diameter | 2 - 15 mm |
| Taping length | 500mm [ customizable ] |
| Taping speed | 5 turns / second |
| Pulling speed | 0.15 m / second |
| Power supply | AC 110 - 220V, 50 / 60 Hz |
| Dimensions | L 650 x W 400 x H 250 mm |
| Weight | 45 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
