2-Sided Crimping & 1-Sided Connector Housing Assembly Machine

JCW-CM09 Series

Highly flexible automatic connector housing assembly machine

Wire cutting, stripping, crimping to connector plug socket inserting

Wire sealing station is optional

Wire twisting, fluxing and tinning stations are optional

The same wire length or different wire lengths are switchable

Inquire Now

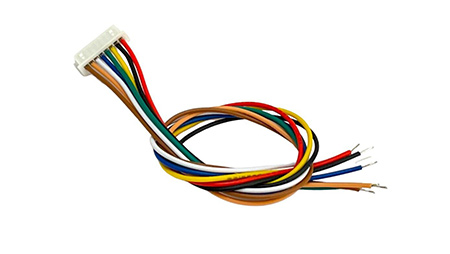

Housing Connector Assembly

JCW-CM09 economical single-wire connector housing insertion machine is a cost-effective automatic wire harness processing equipment. This machine performs wire cutting, stripping, double-sided terminal crimping and single-side connector housing assembly in one workflow.

It can be equipped with CFM crimp force monitoring and pull-out force test function. CFM system monitors crimp pressure in real time to detect abnormal crimping, while pull force testing verifies terminal retention inside connector housing to prevent terminal back-out. Designed as an economical model, it balances reliable performance and competitive cost for wiring harness manufacturers.

JCW-CM09 processes wires one by one for connector housing assembly, supporting 2/3/4/6/9Pin connector applications, widely used for motorcycle electrical connector plug socket kit and other electronic wiring harness. It reduces manual assembly work, cuts human error and stabilizes finished harness quality. With flexible setup and quick connector changeover, it is ideal for small-to-medium batch production of wiring harness.

This automatic cable harness assembly machine suits manufacturers looking for budget-friendly automatic wire crimping and connector housing insertion solutions. CFM crimp monitoring and pull-out force test guarantee assembly quality to meet standard harness production requirements.
