Dual-end Wire Cutting & Stripping, Sealing to Terminating Machine

JCW-CST17B

High-end fully automatic wire harness processing machine

Integrated processes: cutting, stripping, double-end waterproof plug insertion, double-end terminal crimping

Suitable for wires requiring waterproof sealing and terminal connection at both ends

Stable waterproof plug insertion position and terminal crimping quality

Reduces manual operation, improves production efficiency and consistency

Ideal for high-precision automotive and industrial wire harnesses

Supports efficient batch production with high repeat accuracy

Inquire Now

High Price-to-Performance Ratio Sealing Machine

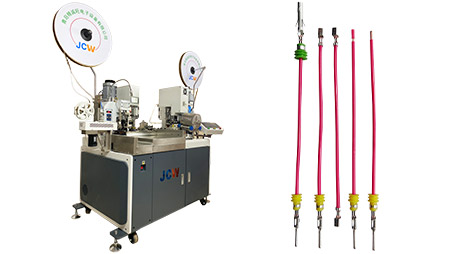

Dual-end Wire Cutting & Stripping, Sealing to Terminating Machine

The JCW-CST17B is a servo-powered fully automatic double-head terminal machine purpose-built for wiring harnesses fitted with waterproof seals. Its centralized servo architecture grants fine-tuned dynamic control over every action, enabling pinpoint alignment when seating waterproof plugs and consistent terminal crimping across long production runs.

This unit carries out the entire manufacturing sequence autonomously: wire loading, length calibration, cutting, insulation stripping, waterproof seal insertion and dual-side terminal crimping within a single workflow. The servo system moderates speed and pressure dynamically during seal installation, safeguarding delicate waterproof plugs against deformation, misalignment or compromised sealing integrity. By completing waterproof plug loading and terminal crimping on both ends simultaneously, it streamlines production workflows and cuts down manual handling steps drastically.

The intuitive touchscreen console supports custom recipe archiving. Operators can retrieve saved parameter sets in moments to swap between different wire and seal specifications, minimizing downtime during product changeovers. Users have the option to add a CFM crimp force monitoring module, which tracks crimping force live during operation. It triggers alerts for flawed crimps and intercepts non-compliant cables to elevate production quality assurance.

Tailored for automotive harness and outdoor electrical cable fabrication where water resistance is critical, this machine sustains uniform assembly outcomes and delivers dependable waterproof harness batches for high-volume manufacturing.

Model	JCW-CST17B Automatic Seal Insertion to Terminal Crimping Machine
Function	Wire measuring and cutting into length, stripping, seal insertion, crimping; Sealing alarm. Cut depth, Strip length, Crimp depth, Automatic detection and sort out defective product
Raw material	AV, AVS, AVSS, CAVUS, KVKIV, UL
Conductor cross-section	0.2 - 2.5 mm²
Cut length ( L )	35 - 99999 mm [ Minimum insulation length 17mm, can be custom ]
Cut length accuracy	0.1 mm ± 0.005 x L
Strip length	Front end: 18 mm Rear end: 20 mm [ can be custom ]
Crimping force	2 tons [ can be custom ]
Display	7" Color touch screen, English / Chinese [ other languages on request ]
Data library	100 programs
Product rate	1900 pcs/h by 100 mm wire length [ Sealing & Crimping ]
Optional peripherals	CFM, CCD, Wire prefeeder, Wire stacker
Rated power	2000 W
Air supply	0.4-0.8 MPa [ clean and dry air ]
Power supply	AC 110 - 220V ± 10%, 50 / 60 Hz
Dimensions	L 1400 x W 920 x H 1500 mm
Weight	600 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
