JCW-CST15
High-level semiautomatic sealing machine
Wire range: 0.2 - 2.5 mm² [ AWG 24 - 14 ]

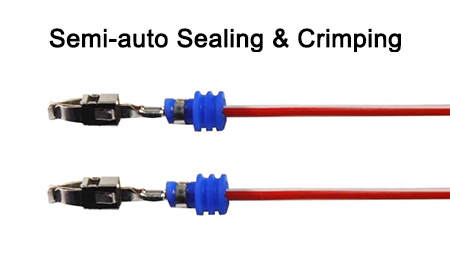

Wire sealing, stripping, crimping 3 in 1
Short cycle time 4 seconds
Servo motorized crimping machine
High speed, stable crimping, CFM is compatible
Reliable and robust machine
JCW-CST15 Semi-automatic Sealing and Crimping Machine
Carrying 3 tons crimping press for 2.5mm² wire
Reliable sealing solution
The JCW-CST15 wire sealing terminal crimping machine is a high-level model for applications in the high-tech automotive industry. The machine serves sealing, wire stripping, and terminal crimping of wires in the cross-section range from 0.1 mm² to 2.5 mm², crimping force is 3 tons ( 30 KN ).
This sealing and crimping machine adopts a servo motorized crimping press, which maximizes the crimping speed and stability. The crimping position is adjustable via the touch screen, simple and precise operation is our advantage. A crimping force monitoring ( CFM ) is compatible to maximize the crimping result.
The fast and accurate feeding of the seal is a great guarantee of processing speed and precision. The operator can adjust the sealing position in one second. Furthermore, seal change is never so simple to meet customers' various processing needs.
| Model | JCW-CST15 Semi-automatic Sealing and Crimping Machine |
| Function | Sealing, stripping, crimping. Seal feeding, cut depth, stripping length, crimping position. Optional CFM. |
| Wire range | 0.2 - 2.5 mm² [ AWG 24 - 14 ] |
| Seal type | O.D. x Length φ 10 x 10 |
| Stripping length | Max10 mm |
| Cut depth accuracy | +/- 0.02 mm |
| Crimp force | 3 tons |
| Stroke | 40 mm |
| Cycle time | 4 seconds |
| Display | Touch screen, English / Chinese [ other languages on request ] |
| Product rate | 1200 pcs/h |
| Air supply | 0.5 - 0.7 MPa [ clean and dry air ] |
| Power supply | AC 110 - 220V ± 10%, 50 / 60 Hz |
| Dimensions | L 1100 x W 920 x H 1600 mm |
| Weight | 350 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
