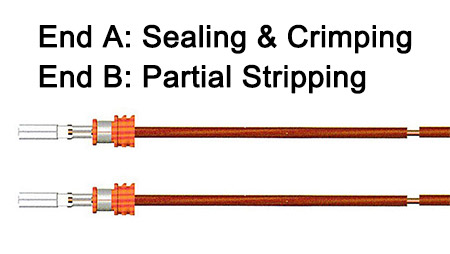

Fully-auto Wire Sealing-Crimping, Partial Stripping

Fully-auto Wire Sealing-Crimping, Partial Stripping

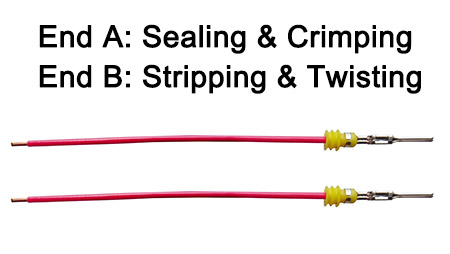

Fully-auto Wire Sealing-Crimping,Stripping-Twisting

Fully-auto Wire Sealing-Crimping,Stripping-Twisting

JCW-CST11 Fully Automatic Single-end Seal Insertion and Crimp Machine

Carrying 2 tons crimping press for 2mm² wire, 3 tons press on request


Features of the machine

The JCW-CST11 is a highly cost-effective model for applications in the high-tech automotive industry. The machine serves wire cutting, stripping, seal insertion, and terminal crimping of wires in the cross-section range from 0.1 mm² to 2 mm², crimping force is 2 tons ( 20 KN ).


High-quality processing and simple operation

The JCW-CST11 is a high-performance fully automatic wire stripping, sealing, and crimping machine. A high-quality seal supply system is the core component of the whole machine. The fast and accurate feeding of the seal is a great guarantee of processing speed and precision. Production parameters are entered with the 7" color touchscreen monitor via the intuitive user interface to reduce training time and minimize entry errors. The JCW-CST11 offers vivid detection functions, wire lack detection, wire knot detection, stripping detection, crimping detection, air pressure detection and sealing detection, etc.


Various peripherals and options

- Crimping force monitoring ( CFM )

- 3 tons press

- Seal carry pin

- Wire prefeeder for keeping proper wire tension

- Conveyor belt for stacking finished wire

ModelJCW-CST11 Fully-auto Single-end Seal Insertion Machine and Crimping Machine
Function

Wire measuring and cut into length, Double sides stripping, Single side sealing, Single side crimping, Sealing alarm, Sequence work

Wire range
0.08 - 1.3 mm² [ Customizable ]
Seal type
O.D. x Length ≤ φ 15  14
Cut length ( L )50 - 99999 mm
Cut length accuracy 1 mm ± 0.002 x L
Strip length1.5 - 10 mm
Crimping force 2 tons [ 3 tons on request ]
Display7" touch screen, English / Chinese  [ other languages on request ]
Data library100 programs
Product rate3000 pcs/h by 100 mm wire length [ Sealing & Crimping ]
Air supply0.4 - 0.6 MPa [ clean and dry air ]
Power supplyAC 110 - 220V ± 10%, 50 / 60 Hz
Dimensions
L 700 x W 800 x H 1500 mm
Weight360 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
