ModelJCW-CST11D Dual-end Terminal Crimping Single-end Wire Sealing Machine
Function

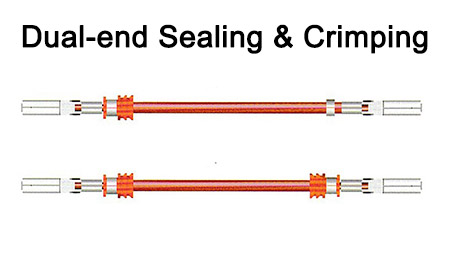

Wire measuring and cut into length, Double sides stripping & terminal crimping, Single side sealing, Sealing alarm, Sequence work

Wire range
0.08 - 1.3 mm² [ Customizable ]
Seal type
O.D. x Length ≤ φ 15  14
Cut length ( L )50 - 99999 mm
Cut length accuracy 1 mm ± 0.002 x L
Strip length1.5 - 10 mm
Crimping force 2 tons [ 3 tons on request ]
Display7" touch screen, English / Chinese  [ other languages on request ]
Data library100 programs
Product rate3000 pcs/h by 100 mm wire length [ Sealing & Crimping ]
Air supply0.4 - 0.6 MPa [ clean and dry air ]
Power supplyAC 110 - 220V ± 10%, 50 / 60 Hz
Dimensions
L 800 x W 1000 x H 1500 mm
Weight450 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
