JCW-CST02 Fully Automatic Dual-ends Terminal Crimping Machine
Economical price with precise wire processing
Feature of the machine
The JCW-CST02 is an automatic wire stripping and crimping machine. The machine allows wire cutting, stripping, and crimping of wires in the cross-section range from 0.1 mm² to 2 mm², crimping force is 2 tons ( 20 KN ). The processing capacity can be expanded to 4 mm² and 4 tons crimping force. The compact machine design provides economic flexibility and high productivity over 4000 pieces per hour.
High quality, high speed, and simple operation
To ensure product quality, JCW integrates high-quality components. Efficient stepper motors, highly rigid transmission structure, high-speed control system. User-friendly interface and 7" touch screen interface offers you accurate input and clear vision. The JCW-CST02 wire crimping machine offers vivid detection functions, wire lack detection, wire knot detection, stripping detection, crimping detection, air pressure detection, etc. High speed and high volume output offer 4000 pcs per hour by 100mm of wire length.

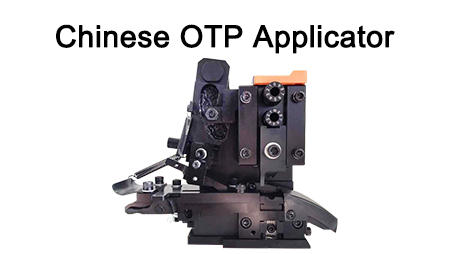

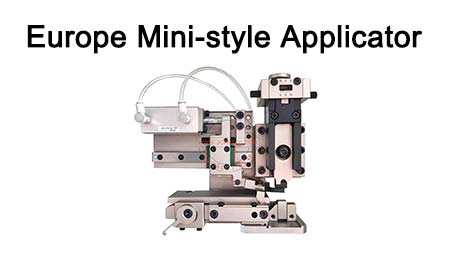

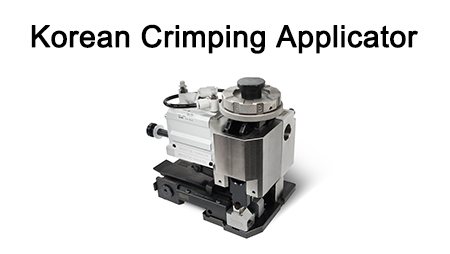

Various peripherals and options
- Crimping force monitoring ( CFM )
- 4 mm² wire processing
- 4 tons crimping machine
- Wire prefeeder for keeping proper wire tension

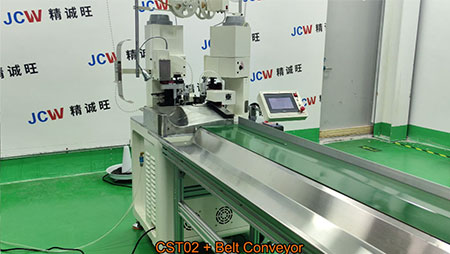

- Conveyor belt for stacking finished wire
- Customize HMI, language & logo

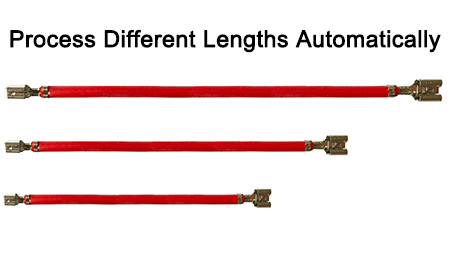

Model | JCW-CST02 Fully Automatic Dual-end Wire Stripping Crimping Machine |
Function | Wire cutting, Single / Dual-end strip, Single / Dual-end crimp, Cut depth, Pull-off length, etc |
Wire cross-section | 0.1 - 2 mm² ( AWG 28 -14 ) [ 4mm² on request ] |
Strip length | 1.5 - 10 mm |
Cut length ( L ) | 45 - 99999 mm |
Cut length tolerance | ± 1mm + 0.002 x L |
Crimp force | 20KN (2.0 tons) [ 40 KN on request ] |
Detector | Wire lack, Terminal crimping, Wire knot, Air pressure [ CFM on request ] |
Production rate | 4000 pcs/h by 100 mm wire length |
Data library | 100 programs |
Display | 7" touch screen, English / Chinese [ other languages on request ] |
Power supply | AC 110 - 220V ± 10%, 50 / 60 Hz |
Air supply | 0.4 - 0.6 MPa [ Clean and dry air ] |
Weight | 358KG |
Dimensions | L 800 x W 700 x H 1500mm |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
