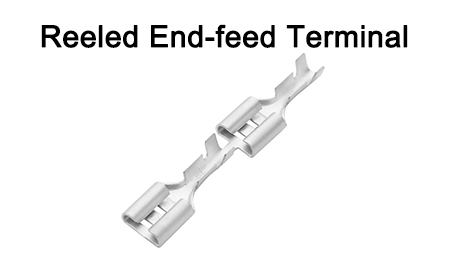

Compatible With Both Side-feed & End-feed Terminal

Compatible With Both Side-feed & End-feed Terminal

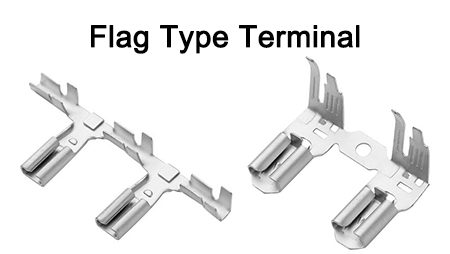

2 Wires & 3 Terminals Processing, Flag Terminal Crimping

2 Wires & 3 Terminals Processing, Flag Terminal Crimping

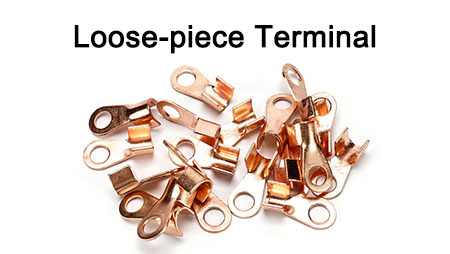

Automatic 2 Wires Joint Crimping Loose-piece Terminal

Automatic 2 Wires Joint Crimping Loose-piece Terminal

JCW-CST10 Fully Automatic Cutting Stripping and Crimping Machine

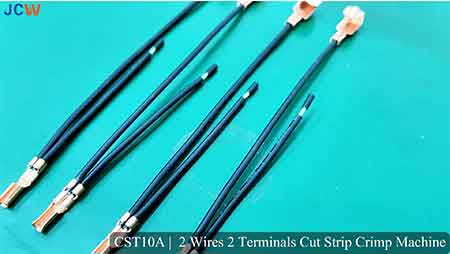

2 Wires, 3 Terminals, 3 Sided Crimping, 2 Wires into 1 Terminal


Feature of the machine

The JCW-CST10 is a highly flexible fully-auto wire stripping and crimping machine. This cut, strip and crimp machine is capable of processing 2 different sized wires and 3 different terminals, the wires range between 14 - 30AWG, at the same time with crimping on one end of each wire and then crimping the 2 wires together into 1 crimp terminal. All parameters such as wire data and crimp data can be saved and retrieved for future use.


High-quality processing and simple operation

To ensure product quality, JCW integrates high-quality components. Efficient stepper motors, highly rigid transmission structure, high-speed control system. User-friendly interface and 7" touch screen interface offers you accurate input and clear vision. The JCW-CST10 offers vivid detection functions, wire lack detection, wire knot detection, stripping detection, crimping detection, air pressure detection, etc.


Various options and peripherals

- Crimping force monitoring ( CFM )

- 4 tons crimping machine

- Wire prefeeder for keeping proper wire tension

- Conveyor belt for stacking finished wire

- Customize HMI, language & logo

ModelJCW-CST10 Fully-auto Wires Cut Strip and Crimp Machine
Functions

2 Wires, 3 Terminals, 3 Crimping Units, Cut depth, Crimp position, Pull-off length, Wire detector, Knot detector, Air pressure detector

Wire cross-section
0.05 - 2 mm² ( AWG 30 - 14 )
Cut length ( L )
41 - 99999 mm [ Short size on request ]
Cut accuracyL<100mm: 0.2 mm ± 0.002 x L
L>100mm: 0.5 mm ± 0.002 x L
Cut length increment
0.01 mm, max 5.5 mm
Strip lengthFront end: 0.5 - 8 mm
Rear-end: 0.1 - 10 mm
Production rate
2000 sets/h
Display7" touch screen, English / Chinese  [other languages on request]
Data library100 programs
Crimping force20 KN ( 2.0 tons )  [40 KN on request]
Optional peripheralWire pre-feeder, CFM, wire stacker
DetectionWire lack, Terminal crimping, Wire knot, Air pressure
Power supplyAC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply0.4 - 0.7 MPa [ clean and dry air ]
DimensionsL 1000 x W 1600 x H 1800 mm
Weight550 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
