ModelJCW-CST02B Ultra-eco Fully-auto Dual-end Wire Crimping Machine
Function

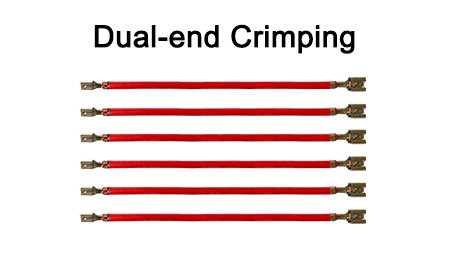

Wire cutting, Single / Dual-end strip, Single / Dual-end crimp, Cut depth, Strip length

Wire cross-sectionAWG 32 -18
Strip length0.1 - 15 mm
Cut length ( L )10 - 9999 mm
Crimp force18 KN (1.8 tons)
DetectorWire lack, Terminal crimping, Wire knot, Air pressure [CFM on request]
Production rate4500 pcs/h by 100 mm wire length
Data library100 programs
Display7" touch screen, English / Chinese  [other languages on request]
Power supplyAC 110 - 220V ± 10%, 50 / 60 Hz
Air supply0.4 - 0.6 MPa [ Clean and dry air ]
Weight290 KG
Dimensions L 780 x W 650 x H 1380mm
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
