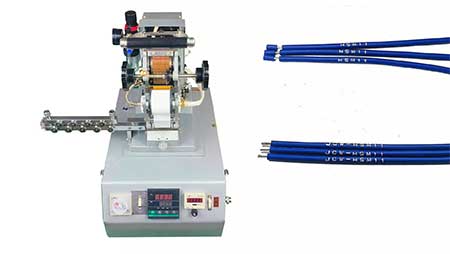

Hot-stamping Marker For Wire, Cable & Tubing

JCW-HSM11

Connected with CS series machines to build an automatic line

Compatible with PVC tubing, heat-shrinkable tubing, wire, etc

Manually adjustable stamping wheels, 11 wheels.

Wheel quantity 7 - 40 fully customizable

Each wheel with characters A~Z, numbers 0~9, symbols +, -, /, and spaces (can also be customized)

Character size 2.4×2.4,1.8x1.8,1.2×1.2, can be custom

Curved surface R1 to R14, can be custom

Never fade, water-resistant, oil-resistant and heat-resistant

Inquire Now

Hot Stamping Marker

Print Cut Strip Print & Wind

Model	JCW-HSM11 Hot-stamping Marker
Character sizes	2.4×2.4,1.8x1.8,1.2×1.2, 1.0x1.0 [ can be custom ]
Mark length	11 characters Characters A~Z, numbers 0~9, symbols +, -, /, and spaces (can also be customized)
Wire diameter	1.5 - 8 mm
Tube diameter min.	0.5 mm
Stamping temperature	60 - 180 ℃
Power supply	AC 220V ± 10%, 50 / 60 Hz
Air supply	0.4 MPa [ only for pneumatic model ]
Dimensions	L 355 x W 280 x H 360mm
Weight	20 KG
