Automatic Flat Ribbon Cable Splitting and Stripping Machine

JCW-CS12

Flat cable, ribbon cable dedicated machine

20mm in width, 30mm stripping length at dual-end

6 rollers feed system maintains feeding and pulling accuracy

Slitting length can be adjusted simply and quickly

4.3" color touch screen, user-friendly interface

Fully programmable saves 100 programs

Inquire Now

Dedicated Ribbon Cable Slitting Cutting and Stripping Machine JCW-CS12

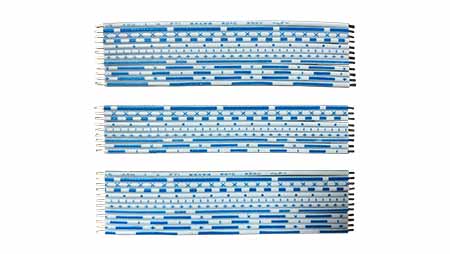

Flat ribbon cable processing equipment, high-performance slitting

Reliable and Precise

The JCW-CS12 is a dedicated ribbon cable processing machine, it separates cables precisely with no damage to cable insulation and conductor. The maximum processing width is 20mm. By simple and quick adjustments, the guide tube can be adapted to cables of different widths. The high-torque stepper motor and 6-roller feeding system ensure the accurate cutting length and stripping length.

Easy to use

Whether novice or professional, you can quickly use the JCW-CS12 wire slitting & stripping machine proficiently.

- The control with touch screen has an intuitive user interface for simple and safe operation.

- The parameters such as wire cutting length, stripping length, slitting length, speed, etc. can be accurately entered and stored for future recall at any time.

- Data library saves 100 programs, you can name each one by a wish.

- This slitting and stripping machine features automatic one-touch calibration function for cutting length.

- Quickly adjust guide tubes and change cutter blades for cables at different widths.

- Each CS12 cut & strip machine comes with a transparent safety cover, spare cutter blade, local power cord, and silicone touchscreen pen.

Peripherals

- Wire unwind & pre-feed machine, load range from 15 to 200 KG

- Robot arm controlled by CS12

- Cable stacker, 1 meter to 6 meters

Model	JCW-CS12 Automatic Ribbon Cable Slitting Cutting and Stripping Machine
Function	Ribbon cable, Cable measuring, Cut length, Slitting length, Full stripping, Partial stripping, Cut depth, cutting length correction
Cable width	Max 20 mm
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Stripping length	30 mm
Production rate	3000 - 5000 pcs/h
Data library	100 programs
Display	4.3" color touchscreen, English / Chinese [ other languages on request ]
Cable feeding	6 rollers
Compatible peripherals	Cable prefeeding machine, robot arm, cable collector
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	L 560 x W 470 x H 370 mm
Weight	38 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
