Corrugated Pipe Cutting Machine

Corrugated Pipe Cutting Machine

JCW-C06 Flexible Cable Protection Hose Cutting Machine

Straight cut, precise feeding, 4 - 38 mm diameter

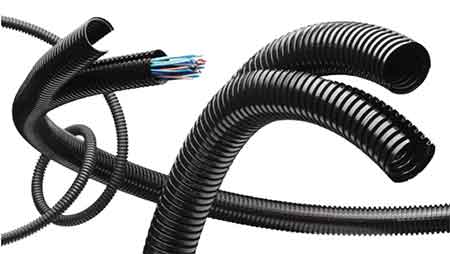

Non-slitted corrugated tube

The JCW-C06 automatic tube cutting machine is specially designed to measure and cut the flexible corrugated hose. This flexible corrugated hose cutting machine is also capable to cut PVC tubes. Standard model process tubes ranging from φ4mm to φ28mm, the capacity can be extended to φ38mm by customization.



This cutting machine uses a common knife blade to offer a beautiful cutting surface, the cut is carried out in vertical mode. High-speed cutting will not cause deformation of the corrugated tube.


Ultra-wide 40mm belt ensures precise feeding.


Efficient & intelligent

Driven by high-efficiency stepper motors, the JCW-C06 automatic tube cutter has high-efficiency processing capabilities. The JCW-C06 tube cutting machine is equipped with a transparent safety cover, which provides a clear vision. When it's open, the machine will stop working automatically and immediately. This electric cutting machine is equipped material run-out sensor, the machine will automatically stop when there is a shortage of material.

ModelJCW-C06 Automatic Cable Protection Hose Cutting Machine
Function

Non-slitted corrugated tube, plastic tubes, cut speed, feeding speed, save the program, calibrate the cutting length

Tube diameter4 - 38 mm
Cutting length ( L )5 - 99999 mm
Cutting length increment0.1 mm
Cutting length tolerance± 0.1 mm [ material with no elasticity ]
Production rate8000 pcs /h by 100 mm length
Data library100 programs
Display4.3" color touchscreen, English / Chinese  [ other languages on request ]
OEMYes
Power supplyAC 220V + 10 %, 50/60 Hz
DimensionsL 640 x W 450 x H 420 mm
Weight66 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
