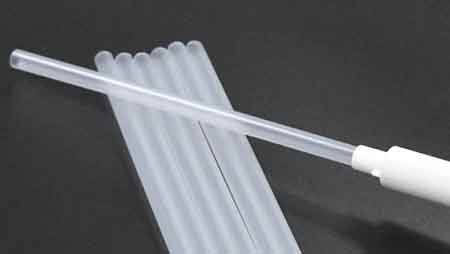

Shower Gel Pipe V-Cut

Shower Gel Pipe V-Cut

JCW-C04A Automatic Tube Cutting Machine

Straight cut, precise feeding, 12mm diameter


Universal and precise

The JCW-C04A automatic tube cutter is suitable to measure and cut various tubes up to 12mm in diameter. This machine can cut PA, PE, PU, PTFE, rubber, and silicon tubes. The JCW-C04A cutting machine uses high torque stepper motors and subdivision drives, this perfect combination ensures high cutting speed, meanwhile, the machine is extremely quiet.


We supply metal or PU-coated rollers for selection, both offer precise feeding length as well as all-around protection to the materials. The clamping diameter can be changed easily by turning a wheel.


The JCW-C04A automatic tube cutting machine can be used as a stand-alone machine or it can be integrated into a processing line.


Smart and customizable

The JCW-C04A automatic tube cutting machine is a fully programmable model. The feeding speed, cutting speed, batch quantity, total quantity, etc. can be input in seconds via touchscreen. The input value will be saved automatically. This cutting machine is capable to save 100 programs.


The JCW-C04 tube cutting machine uses a robust cutter head and HSS blade, this electric tube cutter can be customized to cut tubes with a flat edge, oblique edge/angel, and many more depending on the customer's requirement.

ModelJCW-C04A Automatic Tube Cutting Machine
FunctionCutting speed, feeding speed, save the program, calibrate the cutting length
Raw material

PA, PE, PU, PTFE, rubber, and silicon tubes

Round material diameter12 mm
Flat material width20 mm
Cutting length ( L )0.1 - 99999 mm
Cutting length increment0.1 mm
Cutting length tolerance0.002 x L
Production rate5000 - 15000 pcs /h
Data library100 programs
Display 4.3" color touchscreen, English / Chinese  [ other languages on request ]
OEMYes
Power supplyAC 110 - 220V + 10 %, 50 / 60 Hz
DimensionsL 460 x W 470 x H 350 mm
Weight33 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
