JCW-CS19 Free Standing Belt-driven 120mm² Cable Cutting and Stripping Machine

Expand the capabilities, maximize the productivity


Powerful and precise cable processing equipment

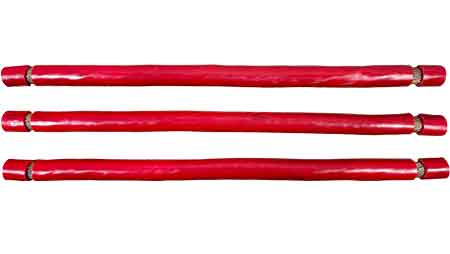

The JCW-CS19 is a robust and precise free-standing machine for cutting into length and stripping 10 to 120mm² big battery cables. The servo motorized cutter head ensures powerful and precise cutting, high-quality wear-resistant feeding belts, and 32 rollers offer powerful clamping force, the feeding length is surprisingly precise. The pull-off length has achieved 800mm on the leading side.

A transparent safety cover and a safety sensor bring all-around protection to the operator, the sensor will give the machine an emergency stop signal once the door is open.


Simple operation, stable performance

The JCW-CS19 cable stripping machine offers simple operation, it's so friendly even to the novice. The control with touch screen has an intuitive user interface, thanks to the microprocessor control, all of the parameters such as wire cutting length, stripping length, cutting speed, feeding speed, wire diameter, etc. can be accurately entered and stored for future recall at any time.

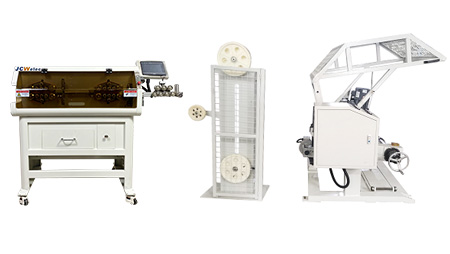

Build your automated product line

- Cable pre-feeding machine, load range from 15 to 200 KG

- Robot arm controlled by CS19, simple setting

- Conveyor belt, 1 meter to 6 meters


Please contact us if you have some special cables and processing needs. We will recommend proper machines and solutions.

ModelJCW-CS19 Belt-driven 120mm² Cable Cutting and Stripping Machine
Function

Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Cut depth, Cut speed, Feed speed, Run-out sensor, Length correction, Safety door sensor

Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections10 - 120 mm²
Cable diameter Max 25 mm
Cutting length ( L )1 - 99999.9 mm
Cutting length accuracy
0.002 x L
Stripping lengthFront ( right ) side: 1 - 800 mm
Rear ( left ) side: 1 - 260 mm
Feeding system32 rollers, belt-driven
Production rate1800 pcs/h  [ depends on cutting length ]
Data library100 programs
OEMYes
Display7" color touchscreen, English / Chinese  [ other languages on request ]
Compatible peripheralsCable splitter, wire pre feeder, robot arm, conveyor belt
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
DimensionsL 1360 x W 650 x H 1450 mm
Weight155 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
